PASS & SEYMOUR

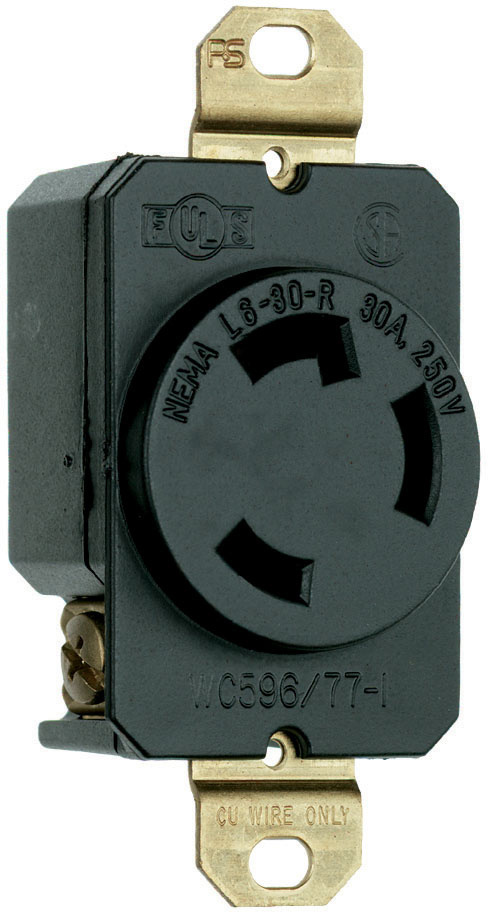

Spec Grade Turnlok® Locking Devices, 30A Single Receptacle

TRNLCK RCPT SINGLE 3WIRE 30A25

PSSL630R L630-R 785007263053
29.66 / EACH
  • Amperage: 30 A
  • Certifications: FEDSPEC
  • Country of Origin: Mexico
  • NEMA: L6-30R
  • Number of Poles: 2
  • Number of Wires: 3.0
  • Voltage: 250.0 V
Features high-quality, brass contacts for rock-solid electrical connections and long service life. Single-piece, solid brass or steel straps and impact-resistant nylon face and body help it shrug off hard use.
  • Product Description
  • Features
  • Specifications
Features high-quality, brass contacts for rock-solid electrical connections and long service life. Single-piece, solid brass or steel straps and impact-resistant nylon face and body help it shrug off hard use.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Accepts #14 - #10 AWG.
  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • Side and external screw-pressure-plate back wire capability.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Standard : UL 498
  • Color : Black
  • Country Of Origin : MX
  • Number of Poles : Double Pole
  • Wire Size : 4 AWG
  • Product Line : Pass & Seymour
  • Application Sector : Industrial
  • Number of Wires : 3.0
  • Voltage : 250.0 V
  • Amperage : 30 A
  • Special Features : Locking Device, impact resistant
  • NEMA Rating : L6-30R
  • Certifications : CULUS,FEDSPEC
  • Certifications
    • cULus Listed : 140596
    • Federal Spec Listed : WC596
