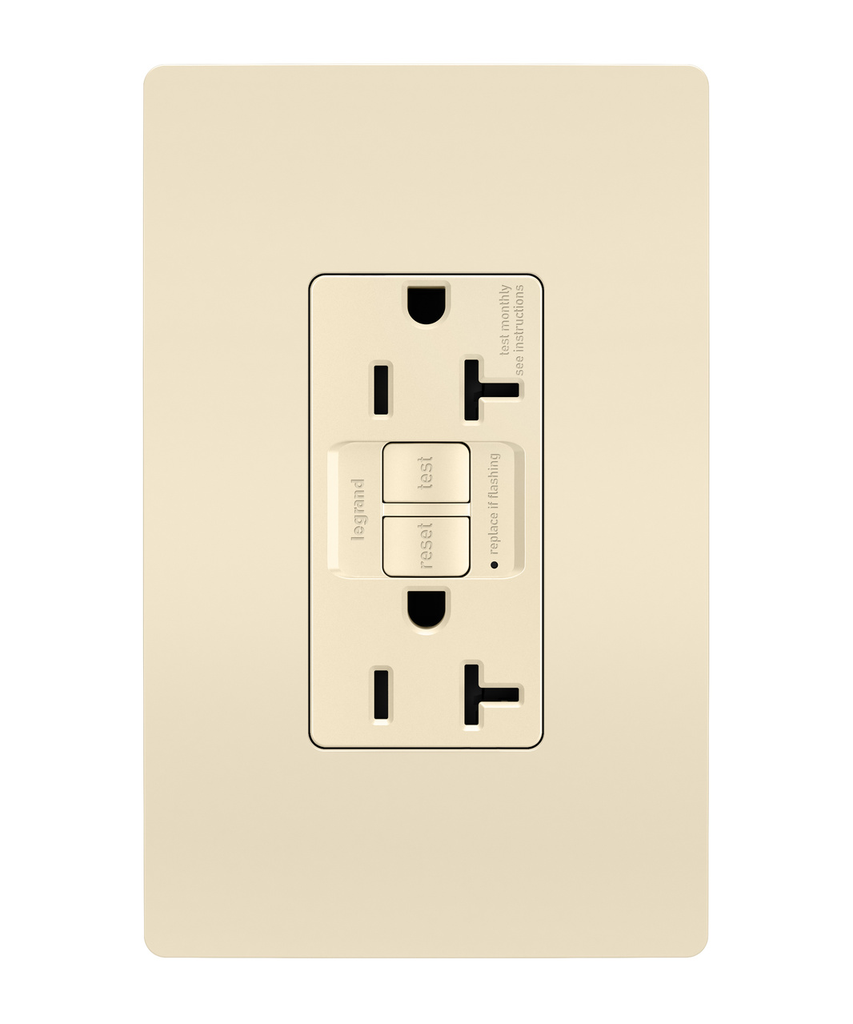

radiant® Spec-Grade 20A Self-Test GFCI Receptacle

radiant® Spec-Grade 20A Self-Test GFCI Receptacle

PSS2097LA 2097-LA 785007036480
18.04 / EACH
  • Amperage: 20 A
  • Country of Origin: China
  • Number of Poles: 2
  • Voltage: 125.0 V
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
  • Product Description
  • Features
  • Specifications
GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
  • Certifications
    • cULus Listed
  • 20 Amp feed-thru capacity
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire and two back wire holes per terminal
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly
  • Part of the radiant: collection
  • 10kA short circuit rating
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
  • Mounting screws are shipped captive in the device and wall plate for easier installation
  • Dual-direction test and reset button colors match the device face
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box
  • Supplied with matching TP wall plate
  • Interrupt Rating : 4.0 A
  • Special Features : Pass & Seymour invented the GFCI receptacle, and at Legrand, we're constantly reinventing it to ensure the highest level of safety possible. From the most advanced self-testing device to audible alarms to nightlight combos, we're continuously resetting the bar on GFCI innovation and safety.
  • Voltage : 125.0 V
  • Country Of Origin : CN
  • Product Line : Pass & Seymour
  • Number of Poles : Double Pole
  • Certifications : CULUS
  • Connection : Back and Side Wire
  • Standard : cULus, UL Listed, FSUL
  • Trip Range : 4 to 6 mA
  • Application Sector : Residential/Commercial
  • Color : Light Almond
  • Amperage : 20.0 A
  • Environmental Conditions : 95% Humidity, UL 94 V2
  • Frequency Rating : 60 Hz
