radiant® Two Single-Pole Switches, White

2 SWITCH SP + SP W

PSSRCD11W RCD11W 785007054880
19.66 / EA
http://schema.org/OutOfStock

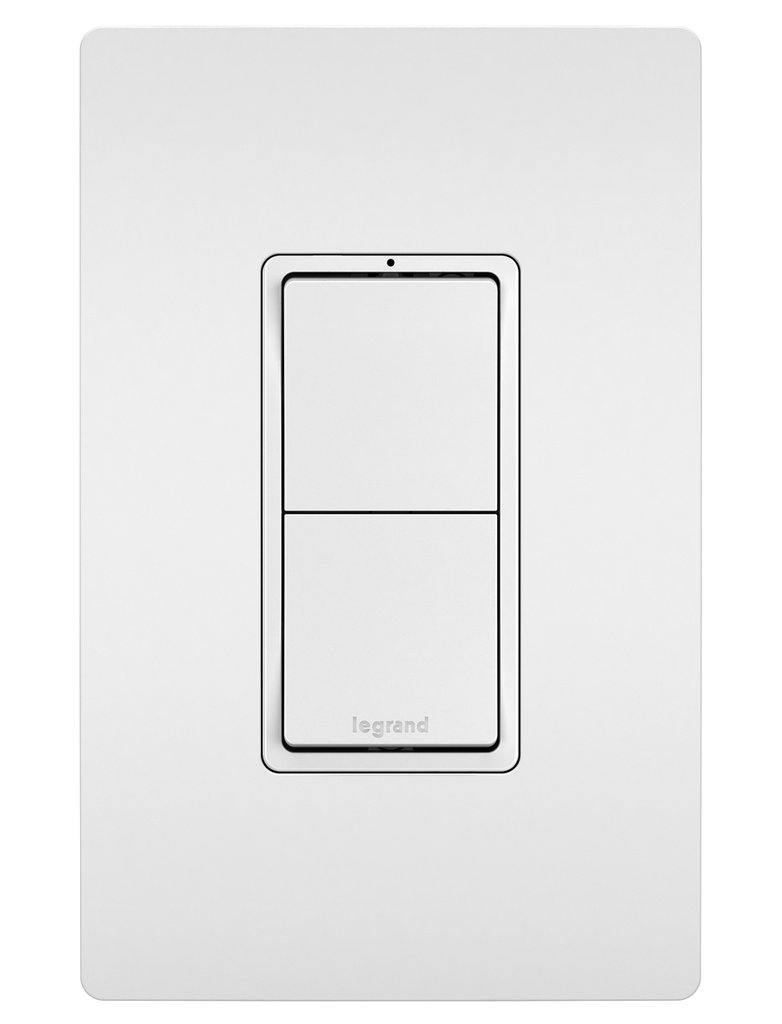

Mayer-DDS-radiant® Two Single-Pole Switches, White-1
  • Amperage: 15 A
  • Applications: Residential
  • Country of Origin: China
  • Depth: 1.59 in
  • Finish: Satin
  • Height: 3.81 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1, 3
  • Number of Switches: 2
  • Operating Cycles: 50000
  • Switch Type: Paddle
  • Type: Switch
  • Voltage: 120 V, 125 V
  • Warranty Length: 1 yr
  • Width: 1.29 in
Control two separate lights or devices from a single location with this combination switch. Designed to emulate the sleek lines of the collection's paddle switches, it delivers flexible, space-saving control with the sophisticated look of radiant.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
QTY
  • Product Description
  • Features
  • Specifications
Control two separate lights or devices from a single location with this combination switch. Designed to emulate the sleek lines of the collection's paddle switches, it delivers flexible, space-saving control with the sophisticated look of radiant.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
  • Certifications
    • UL Listed
    • cULus Listed
  • Features
    • Offers installation flexibility with space-saving style, as part of the extensive offering from the radiant® Collection.
    • Features durable, high-impact resistant thermoplastic construction.
    • Designed to install easily with a narrower back body and captivated mounting screws.
    • Patented Snap-In Light Module (sold separately) transforms a combination switch into an illuminated switch in seconds.
    • More color options available to fit any style, including finishes to match current hardware and lighting trends.
    • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • Specifications
    • Depth : 1.59 in
    • Color : White
    • Height : 3.81 in
    • Width : 1.29 in
    • Finish : Satin
    • Country of Origin : China
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Type : Switch
    • Load Type : CFL
    • Load Type : LED
    • Standard : cULus
    • Amperage : 15.0 A
    • Load Type : Xenon
    • Voltage : 120 VAC
    • Voltage : 125 VAC
    • Load Type : Halogen
    • Standard : UL Listed
    • Switch Type : Paddle
    • Load Type : Universal
    • Number of Gangs : 1.0
    • Features : Combination
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Number of Poles : 3-Way
    • Features : Locator Light
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 2.0
    • Wall Plate Included : No
    • Throw Type : Single Throw
    • Compatible Add-Ons : RCDLM
    • Features : Decorator Style
    • Operating Cycles : 50000.0
    • Requires Neutral Wire : Yes
    • Number of Poles : Single Pole
    • Application Sector : Residential
    • Load Rating : 15 A @ 120/125 VAC
    • Wire Connection Type : Push Wire
    • Environmental Conditions : UL94 V2
    • Connection Location : Back and Side
    • Special Features : The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. Unique "Up/Down" switches match the look and feel of radiant paddle switches.
    • Wire Connection Type : Wire Terminal
    • Warranty Type : 1-Year Limited Warranty
    • Jigsaw Channel Availability : Distribution
    • Terminal Accommodation : #14 AWG - #12 AWG
