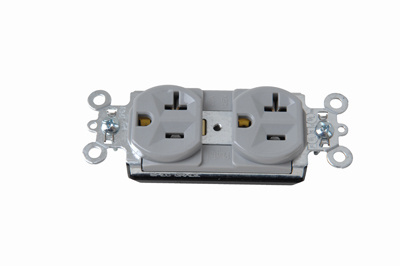

PlugTail® Spec Grade Receptacles, 20A, 125V, Gray PT5362GRY

PlugTail® Spec Grade Receptacles, 20A, 125V, Gray PT5362GRY

PSSPT5362GRY PT5362-GRY 785007091687
8.03 / EACH
  • Amperage: 20 A
  • Capacity: Duplex
  • Country of Origin: Mexico
  • Depth: .625 in
  • Grade: Federal Specification
  • Height: 3.281 in
  • NEMA: 5-20R
  • Product Series: PlugTail
  • Type: Receptacles
  • UNSPSC: 39121406
  • Voltage: 125 V
  • Width: 1.5 in
PlugTail® Spec Grade Duplex Receptacle 20amp 125volt GrayFor detailed PlugTail® information, visit our PlugTail Headquarters.
  • Product Description
  • Features
  • Specifications
PlugTail® Spec Grade Duplex Receptacle 20amp 125volt GrayFor detailed PlugTail® information, visit our PlugTail Headquarters.
  • Eco-Benefit Information
    • RoHS Compliant
  • Crimped and welded contacts.
  • For covering patents, see www.legrand.us/patents.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Large brass contacts snugly terminate on device blade terminals.
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Auto-ground clip assures positive ground.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Listing Agencies/Third Party Certifications
    • UN SPSC : 39121406
    • UL Listing No : E140596
    • cULus : Yes
    • CUL Listing No : E140596
    • UL Standard : UL498
    • RoHS : Yes
    • cUL Standard : UL498
    • Federal Spec : Yes
  • General Info
    • Type : Receptacles
    • Color : Gray
    • Product Series : PlugTail
  • Dimensions
    • Height (US) : 3.281"
    • Depth (US) : .625"
    • Width (US) : 1.5"
  • Buy American Act Compliance
    • Buy American Act Status : Trade Agreement Act Compliant
    • Country Of Origin : MEXICO
  • Technical Information
    • Volts : 125V
    • Amps : 20A
    • NEMA Rating : Yes
    • NEMA Configuration Number : 5-20R
    • Capacity : Duplex
    • Volts (AC) : 125
    • Grade Type : Federal Specification
