PlugTail PTTR20HACUSBW

PlugTail PTTR20HACUSBW

PSSPTTR20HACUSBW PTTR20HACUSBW 785007113433
61.90 / EA
  • Amperage: 20 A
  • Country of Origin: Mexico
  • Depth: 1.45 in
  • Height: 3.281 in
  • Material: Thermoplastic
  • NEMA: 5-20R
  • Type: Duplex PlugTail Receptacles
  • Voltage: 125 V
  • Width: 0.69 in

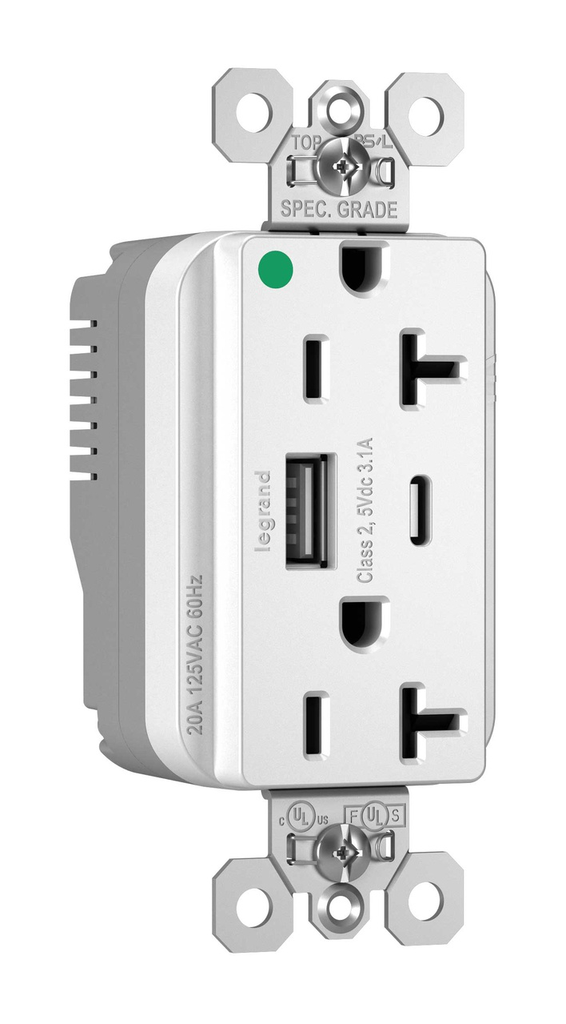

PlugTail® Hospital Grade USB Charging Receptacles provide the convenience of mobile charging – without the need for a bulky AC adapter. This device is a perfect match for the constant needs of today’s mobile environment and is rugged enough to withstand hard-use commercial applications. It comes equipped with two UL Fed Spec AC receptacles and two USB charging ports for mobile devices – one Type-A port and one Type-C port for newer products. An efficient, 15.5W power supply provides ample power needed for charging mobile phones and tablets. The PlugTail termination provides a more productive, secure, and safer installation and allows you to connect with the future of wiring device innovations.For detailed PlugTail® information, visit our PlugTail Headquarters.
  • Product Description
  • Features
  • Specifications
PlugTail® Hospital Grade USB Charging Receptacles provide the convenience of mobile charging – without the need for a bulky AC adapter. This device is a perfect match for the constant needs of today’s mobile environment and is rugged enough to withstand hard-use commercial applications. It comes equipped with two UL Fed Spec AC receptacles and two USB charging ports for mobile devices – one Type-A port and one Type-C port for newer products. An efficient, 15.5W power supply provides ample power needed for charging mobile phones and tablets. The PlugTail termination provides a more productive, secure, and safer installation and allows you to connect with the future of wiring device innovations.For detailed PlugTail® information, visit our PlugTail Headquarters.
  • Available in 15 & 20A, Specification Grade and Hospital Grade configurations
  • Multiple color options available
  • Triple-wipe, brass line contacts for 20A commercial applications
  • Stainless steel auto-ground clips assure positive ground
  • Efficient, 15.5W power supply for fast charging of mobile phones and tablets
  • Zinc-plated steel for corrosion resistance
  • 5Vdc Type-C USB port to charge USB Type-C compatible mobile devices
  • AC receptacles are tamper resistant as standard – patented shutter system prevents improper insertion of foreign objects
  • PlugTail termination allows for more productive, finger-safe installation and added future flexibility
  • Eco-Benefit Information
    • RoHS Compliant
  • Dimensions
    • Height (US) : 3.281"
    • Depth (US) : 1.45"
    • Width (US) : 0.69"
  • General Info
    • Available Colors : Brown, Ivory, Light Almond, Black, Gray, Red
    • Type : Duplex PlugTail Receptacles
    • Color : White
  • Buy American Act Compliance
    • Country Of Origin : MEXICO
  • Technical Information
    • NEMA Configuration Number : 5-20R
    • Operating Temperature (Celsius) : Maximum continuous +60°C, minimum -40°C without impact
    • Amps : 20A
    • NEMA Rating : Yes
    • Volts : 125V
    • Material : Thermoplastic
  • Listing Agencies/Third Party Certifications
    • Federal Spec : Yes
    • UL Listing No : Complies with test requirements UL 498, UL 1312
    • CSA Standard : Yes
    • cULus : Yes
    • CSA Listing Info : C22.2 No. 42, C22.2 No. 230
    • RoHS : Yes
    • UL Standard : Yes
