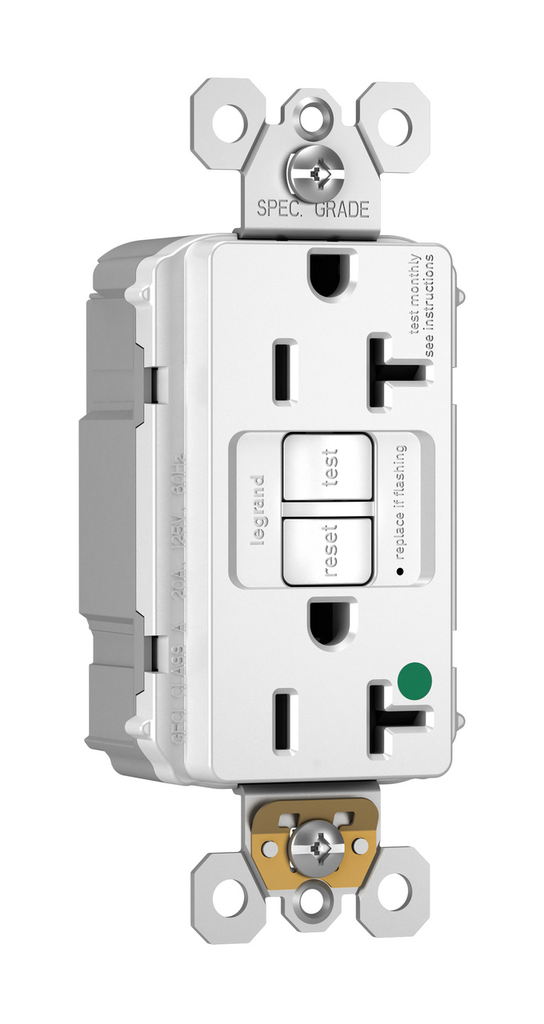

PlugTail® Hospital-Grade 20A Self-Test GFCI Receptacle, White PT2097HGW

PlugTail® Hospital-Grade 20A Self-Test GFCI Receptacle, White PT2097HGW

PSSPT2097HGW PT2097-HGW 785007048223
61.88 / EACH
  • Amperage: 20 A
  • Country of Origin: China
  • NEMA: 5-20R
  • Voltage: 125 V
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail® information, visit our PlugTail Headquarters.For detailed GFCI receptacle information, visit our GFCI Headquarters.
  • Product Description
  • Features
  • Specifications
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail® information, visit our PlugTail Headquarters.For detailed GFCI receptacle information, visit our GFCI Headquarters.
  • Eco-Benefit Information
    • RoHS Compliant
  • FSUL Listed (Federal Specification WC596).
  • GFCI works with existing 3-wire PlugTail Connectors creating a non-feed-thru application for facility owners.
  • Supply Voltage: 125VAC, 60 Hz
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Trip Time: 0.025 sec., nominal per UL Standard
  • Trip Threshold: 5 +/- 1 mA
  • Trip indicator light (red LED).
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail® Connector.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Faster, more reliable installation.
  • Auto-Ground clip assures a positive ground to metal box.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Meets 2015 UL requirements.
  • No exposed terminals create a finger-safe application before, during, and after installation.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Tri-drive screws.
  • Supply Voltage Range: 102-132 VAC
  • Zinc-plated steel mounting strap.
  • Supplied with matching TP wall plate.
  • 10kA short circuit rating.
  • High-impact-resistant thermoplastic construction.
  • Dual-direction test and reset buttons.
  • Class A rated GFCI.
  • Button colors match the device face.
  • Buy American Act Compliance
    • Country Of Origin : CHINA
  • General Info
    • Color : White
  • Technical Information
    • NEMA Configuration Number : 5-20R
    • Volts : 125
    • Amps : 20A
  • Listing Agencies/Third Party Certifications
    • CSA Listed : No
    • cULus : Yes
    • Federal Spec : Yes
    • UL Standard : UL498
    • RoHS : Yes
