PASS & SEYMOUR

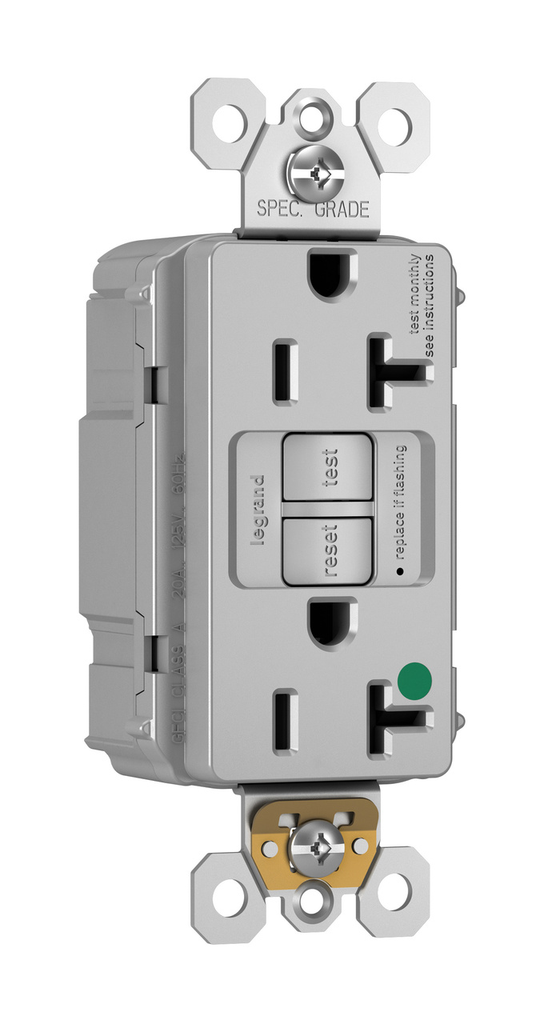

PlugTail® Hospital-Grade 20A Self-Test GFCI Receptacle, Gray PT2097HGGRY

PlugTail® Hospital-Grade 20A Self-Test GFCI Receptacle, Gray PT2097HGGRY

PSSPT2097HGGRY PT2097-HGGRY 785007048469
61.88 / EACH
  • Amperage: 20 A
  • Country of Origin: China
  • NEMA: 5-20R
  • Voltage: 125 V
  • Color: Gray
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail® information, visit our PlugTail Headquarters.For detailed GFCI receptacle information, visit our GFCI Headquarters.
  • Product Description
  • Features
  • Specifications
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail® information, visit our PlugTail Headquarters.For detailed GFCI receptacle information, visit our GFCI Headquarters.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • GFCI works with existing 3-wire PlugTail Connectors creating a non-feed-thru application for facility owners.
  • Trip indicator light (red LED).
  • Tri-drive screws.
  • High-impact-resistant thermoplastic construction.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Auto-Ground clip assures a positive ground to metal box.
  • Supplied with matching TP wall plate.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Meets 2015 UL requirements.
  • 10kA short circuit rating.
  • Trip Threshold: 5 +/- 1 mA
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Dual-direction test and reset buttons.
  • Supply Voltage Range: 102-132 VAC
  • Class A rated GFCI.
  • Zinc-plated steel mounting strap.
  • No exposed terminals create a finger-safe application before, during, and after installation.
  • Supply Voltage: 125VAC, 60 Hz
  • FSUL Listed (Federal Specification WC596).
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail® Connector.
  • Button colors match the device face.
  • Trip Time: 0.025 sec., nominal per UL Standard
  • Faster, more reliable installation.
  • Eco-Benefit Information
    • RoHS Compliant
  • Buy American Act Compliance
    • Country Of Origin : CHINA
  • Listing Agencies/Third Party Certifications
    • cULus : Yes
    • CSA Listed : No
    • Federal Spec : Yes
    • RoHS : Yes
    • UL Standard : UL498
  • General Info
    • Color : Gray
  • Technical Information
    • NEMA Configuration Number : 5-20R
    • Amps : 20A
    • Volts : 125
