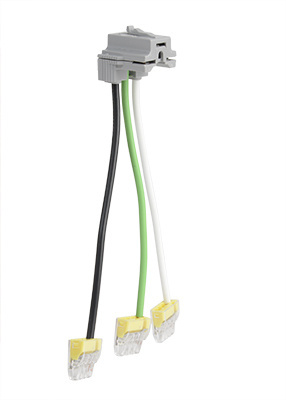

PlugTail® Connectors, Right Angle with WAGO Connector, Stranded, 6''

PlugTail® Connectors, Right Angle with WAGO Connector, Stranded, 6''

PSSPTRA6STRBP PTRA6-STRBP 785007278255
6.13 / EACH
  • Country of Origin: Mexico
  • Number of Poles: 2
  • Number of Wires: 3.0
PlugTail® Connectors Right Angle with WAGO Connector Stranded 6""For detailed PlugTail® information, visit our PlugTail® Headquarters.
  • Product Description
  • Features
  • Specifications
PlugTail® Connectors Right Angle with WAGO Connector Stranded 6""For detailed PlugTail® information, visit our PlugTail® Headquarters.
  • For covering patents, see www.legrand.us/patents.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Available in any wire length up to 25 inches, use Configurable Solutions to order.
  • Large brass contacts snugly terminate on device blade terminals.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Dielectric Strength : Withstands 2000V minimum
  • Special Features : Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing. Large brass contacts snugly terminate on device blade terminals. Pre-stripped connector leads fasten to conductors, easier than standard pigtails. Exclusive patented feature, circuit label on back allows permanent circuit identification.
  • Application Sector : Commercial
  • Number of Wires : 3.0
  • Country Of Origin : MX
  • Standard : cULus UL498
  • Certifications : CULUS
  • Number of Poles : Double Pole
  • Product Line : Pass & Seymour
  • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Wire Size : PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, stranded, for use with PlugTail Receptacles only
  • Environmental Conditions : Flammability: UL94 V2
  • Certifications
    • cULus Listed : 140596
