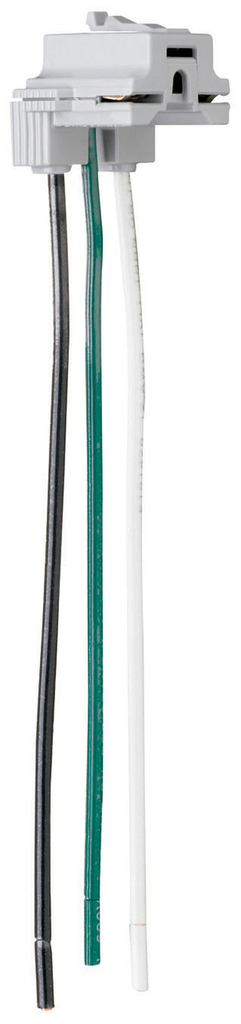

PlugTail® Connectors, Right Angle, Solid, 6-inch PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.

• Certifications
• UL Listed
• cULus Listed
• Features
• Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
• Plated steel wrap strap design for maximum durability and corrosion resistance.
• Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
• Available in any wire length up to 25 inches, use Configurable Solutions to order.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
• Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
• PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6"" leads, stripped, solid, for use with PlugTail Receptacles only

• Specifications
• Length : 6.0 in
• Country of Origin : China
• Color : Gray
• Finish : Matte
• Product Line : Pass & Seymour
• Type : Accessory
• Features : Plug-In
• Wire Size : 12 AWG
• Number of Wires : 3.0
• Standard : cULus UL498
• Indoor/Outdoor : Indoor
• Is Tamper-Resistant : Yes
• Application Sector : Commercial
• Connection Location : Back Only
• Wire Connection Type : PlugTail
• Warranty Type : 1-Year Limited Warranty
• Dielectric Strength : Withstands 2000V minimum
