PASS & SEYMOUR

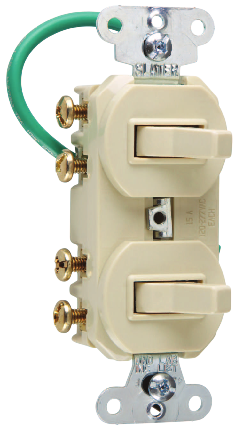

P&S 693-IG COMBO 2 SWITCHES 3W 15A

P&S 693-IG COMBO 2 SWITCHES 3W 15A

PSS693IG 693-IG 785007006131
12.82 / EACH
  • Number of Poles: 3
  • Voltage: .433 V
  • Specifications
  • Attributes
    • Action : (2) 3W
    • Actuator : Toggle
    • Amperage Rating : 15
    • Application : Residential/Commercial
    • Brand Name : Legrand-Pass & Seymour
    • Connection : Side wire
    • Contact Configuration : N-O
    • Contact Rating : 15 Amp, 120/277 VAC
    • Environmental Conditions : Flammability: UL94 V2
    • Mounting : Wall
    • Number Of Poles : 3-Way
    • Operating Cycles : 30000
    • Operating Temperature : Maximum continuous +60°C, minimum -30°C
    • Size : 1.32 L x 0.94 W x 4.06 H In
    • Special Features : Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.
    • Standard : UL20
    • Sub Brand : Pass & Seymour
    • Type : Combination Two Three-Way Switches
    • Voltage Rating : 0.433212996389892 VAC
    • Wattage : Electrical power is expressed in Amps and Volts.
