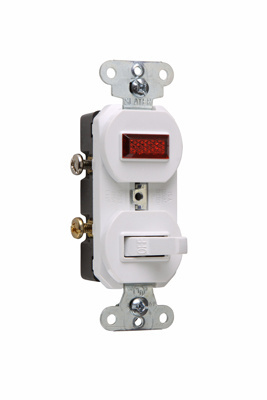

P&S 692-WG COMBO SW 1P 15A120V PILO

P&S 692-WG COMBO SW 1P 15A120V PILO

PSS692WG 692-WG 785007006117
25.64 / EACH
  • Voltage: 125 V
  • Specifications
  • Attributes
    • Action : SP & Pilot Light
    • Actuator : Toggle
    • Amperage Rating : 15
    • Application : Residential/Commercial
    • Brand Name : Legrand-Pass & Seymour
    • Connection : Side wire
    • Contact Configuration : N-O
    • Contact Rating : 15 Amp, 120/125 VAC
    • Environmental Conditions : Flammability: UL94 V2
    • Mounting : Wall
    • Number Of Poles : 1
    • Operating Cycles : 30000
    • Operating Temperature : Maximum continuous +60°C, minimum -30°C
    • Size : 1.32 L x 0.94 W x 4.06 H In
    • Special Features : Easily accessible break-off for separate or common feed. Long-life red neon lamp in pilot light rated 1/25 Watt, 125V. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.
    • Standard : UL20
    • Sub Brand : Pass & Seymour
    • Type : Combination Single Pole Switch & Pilot Light
    • Voltage Rating : 120/125 VAC
    • Wattage : Pilot Light: 1/25
