PASS & SEYMOUR

Combination Switches

Combination Switches

PSS670WG 670-WG 785007006049
32.35 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Combination Switches-1
  • Amperage: 20 A
  • Applications: Hospitality, Residential
  • Color: White
  • Country of Origin: Mexico
  • Depth: 0.94 in
  • Finish: Satin
  • Height: 4.06 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 2
  • Operating Cycles: 30000
  • Switch Type: Toggle
  • Type: Combination
  • Voltage: 120/277 V
  • Warranty Length: 1 yr
  • Width: 1.32 in

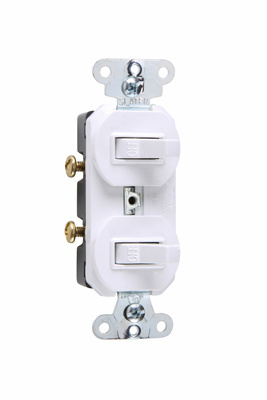

Single-Pole, Double Combination Switch, 20A, 120/277V, White.
QTY
  • Product Description
  • Features
  • Specifications
Single-Pole, Double Combination Switch, 20A, 120/277V, White.
  • Features
    • Easily accessible break-off separate or common feed.
    • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
    • Side wire #12 and #14 AWG.
    • Two devices fit into the space of one.
    • Grounding combination devices meet NEC Requirements.
    • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
    • For covering patents, see www.legrand.us/patents.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 0.94 in
    • Special Features : Easily accessible break-off for separate or common feed. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements.
    • Height : 4.06 in
    • Width : 1.32 in
    • Load Type : CFL
    • Country of Origin : Mexico
    • Load Type : LED
    • Standard : UL20
    • Amperage : 20.0 A
    • Load Type : Xenon
    • Type : Combination
    • Load Type : Halogen
    • Number of Gangs : 1
    • Voltage : 120/277 V
    • Switch Type : Toggle
    • Load Type : Universal
    • Features : Combination
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 2.0
    • Wall Plate Included : No
    • Throw Type : Single Throw
    • Operating Cycles : 30000.0
    • Contact Configuration : N-O
    • Requires Neutral Wire : Yes
    • Number of Poles : Single Pole
    • Connection Location : Side Only
    • Application Sector : Hospitality
    • Application Sector : Residential
    • Load Rating : 20 A @ 120/277 VAC
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #12 AWG
    • Environmental Conditions : Flammability: UL94 V2
    • Color : White
    • Finish : Satin
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
