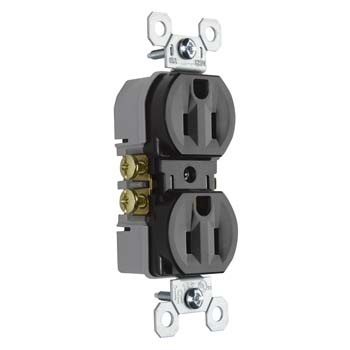

Trademaster® 15A 125V Tamper-Resistant Duplex Receptacle, Brown

DUPLEX REC TR 15A/125V BROWN

PSS3232TR 3232-TR 785007242690
2.43 / EACH
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Hospitality, Residential
  • Country of Origin: China
  • Depth: 1 in
  • Finish: Matte
  • Height: 3.31 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 2.0
  • Number of Wires: 3
  • Outlet Type: Tamper-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
Our Pass & Seymour TradeMaster® receptacles combine a traditional look with reliable, time-tested operation for any residential application. This receptacle is also outfitted with our patented automatic shutter system to prevent young children from inserting common objects, such as hairpins or keys. The shutters release when a plug is inserted. Required by the National Electrical Code® (NEC®).For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
QTY
  • Features
  • Specifications
  • Features
    • Quality Materials, durability, and time-tested design
    • Rated 15 amperes
    • Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
  • Certifications
    • UL Listed
    • cULus Listed
  • Specifications
    • Country of Origin : China
    • Depth : 1.0 in
    • Height : 3.31 in
    • Width : 1.32 in
    • Color : Brown
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Amperage : 15.0 A
    • Number of Poles : Double Pole
    • Indoor/Outdoor : Indoor
    • Number of Receptacles : 2.0
    • Standard : UL 498
    • Is Tamper-Resistant : Yes
    • Outlet Type : Tamper-Resistant
    • Application Sector : Residential; Hospitality
    • Wall Plate Included : No
    • Number of Wires : 3.0
    • Warranty Type : 1-Year Limited Warranty
    • Wire Connection Type : Screw Terminals; Push Wire
    • Connection Location : Back and Side
    • Voltage : 125.0 V
    • Terminal Accommodation : #14 AWG - #10 AWG
    • NEMA Configuration Code : 5-15R
