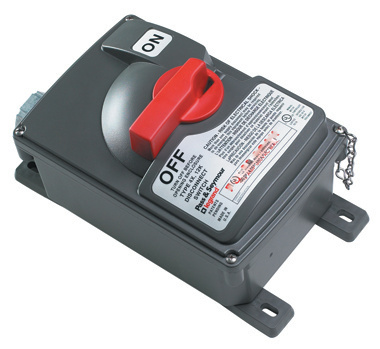

Non-Fusible Safety Switch, 30 Amps

Non-Fusible Safety Switch, 30 Amps

PSSPS30SS PS30-SS 785007150018
210.55 / EACH
  • Amperage: 30 A
  • Country of Origin: USA
  • Voltage: 277.0 V
  • Wattage: 10 W
Non-Fusible Safety Switch, 30 Amps, 600 VAC. The first non-metallic NEMA 4X Non-Fusible Safety Switch line UL Listed as Suitable as Motor Disconnect per NEC Article 430.109(A)(6). P&S Non-Fusible Safety Switches feature extra-tough components, including an impact-resistant Valox NEMA 4X enclosure. And an innovative design that delivers safe, sure operation under the worst conditions.
  • Product Description
  • Features
  • Specifications
Non-Fusible Safety Switch, 30 Amps, 600 VAC. The first non-metallic NEMA 4X Non-Fusible Safety Switch line UL Listed as Suitable as Motor Disconnect per NEC Article 430.109(A)(6). P&S Non-Fusible Safety Switches feature extra-tough components, including an impact-resistant Valox NEMA 4X enclosure. And an innovative design that delivers safe, sure operation under the worst conditions.
  • Bottom and top wiring access options. No unnecessary openings to compromise water resistance.
  • Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle.
  • Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout provisions and provides plenty of grip for sure, easy operation.
  • Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage.
  • Top mount auxiliary contact enables additional control functions or signal lights.
  • Corrosion-resistant, stainless steel captive screws speed installation, minimize risk of lost parts, and withstand abuse.
  • Durable, stainless steel coverretaining chain makes installation and maintenance more convenient.
  • Switch entry into the enclosure is offset to the side and sealed to provide enhanced water resistance.
  • Adjustable mounting feet can be moved to center of unit for instant strut- or pole-mounting without special brackets or harnesses.
  • Nonconductive, watertight, corrosion-, heat-, and impact-resistant thermoplastic enclosure ensures NEMA 4X and 12 ratings. Withstands the harshest industrial environments.
  • Certified for IP69 applications.
  • Amperage : 30.0 A
  • Country Of Origin : US
  • Wattage : 10.0 W
  • Voltage : 277.0 V
  • Certifications : CULUS
  • Application Sector : Industrial
  • Color : Gray
  • Standard : UL 498
  • Special Features : Bottom & Top wiring access, Ergonomic switch handle
  • Product Line : Pass & Seymour
  • Certifications
    • cULus Listed : 31169
