PASS & SEYMOUR

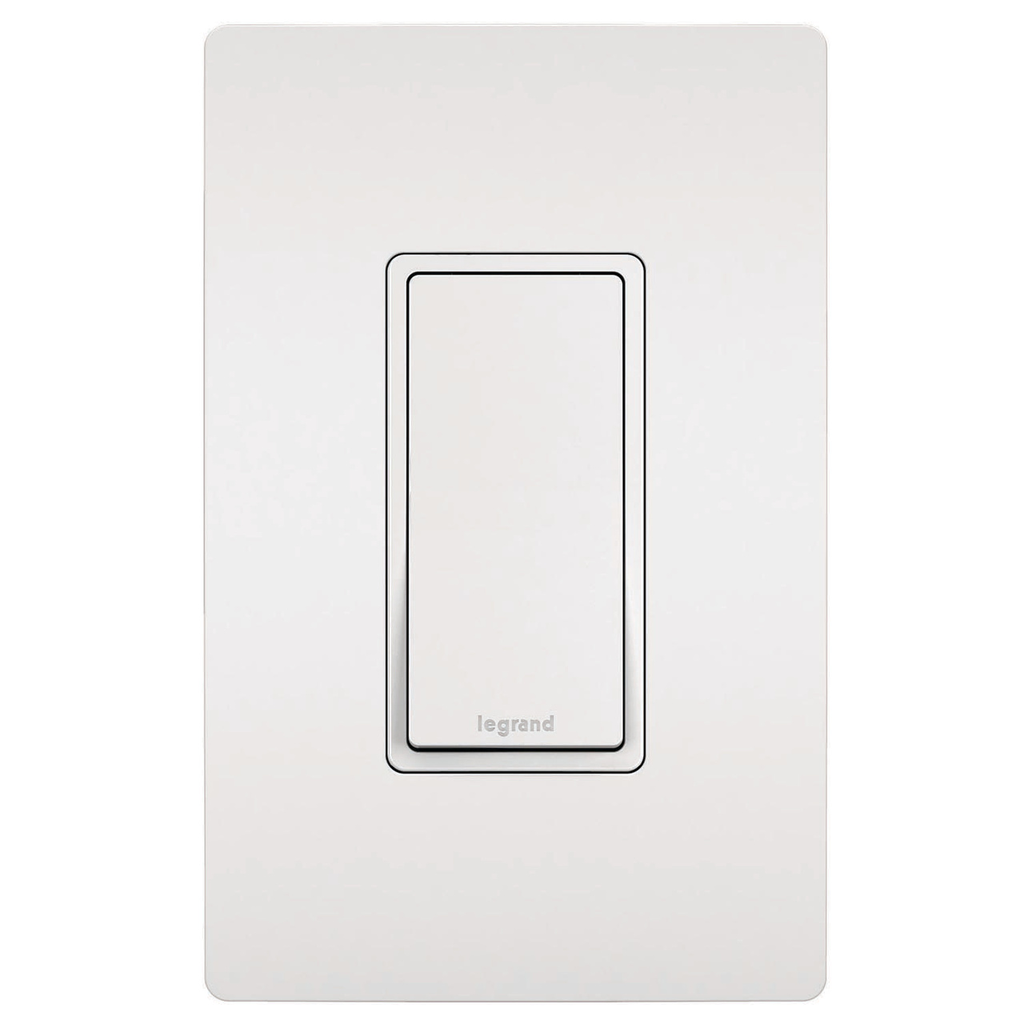

radiant® 15A 3-Way Switch, White

DECOR SW 3W/15A 120/277V WHITE

PSSTM873W TM873-W 785007245462
6.21 / EACH
http://schema.org/OutOfStock
Mayer-DDS-radiant® 15A 3-Way Switch, White-1
  • Amperage: 15 A
  • Applications: Commercial, Residential
  • Country of Origin: China
  • Depth: 1.27 in
  • Finish: Matte
  • Height: 4.19 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Mounting Type: Box
  • Number of Gangs: 1
  • Number of Poles: 3
  • Number of Switches: 1
  • Switch Type: Paddle
  • Type: Switch
  • Voltage: 120/125 V
  • Warranty Length: 1 yr
  • Width: 1.43 in
Allowing control of a light or fixture from two separately located switches, the radiant® 3-Way Switch upgrades your space with clean lines and smooth paddle action for a sophisticated touch.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
QTY
  • Product Description
  • Features
  • Specifications
Allowing control of a light or fixture from two separately located switches, the radiant® 3-Way Switch upgrades your space with clean lines and smooth paddle action for a sophisticated touch.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
  • Features
    • Replaces any standard switch with ease, in as little as 10 minutes
    • Uses a paddle switch for smoother control with a low-profile aesthetic
    • Features durable, high-impact resistant thermoplastic construction
    • Designed to install easily with a narrower back body and captivated mounting screws
    • More color options available to fit any style, including finishes to match current hardware and lighting trends
    • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection
    • Back and side wire termination options accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
  • Certifications
    • cULus Listed
    • UL Listed
  • Specifications
    • Depth : 1.27 in
    • Color : White
    • Height : 4.19 in
    • Width : 1.43 in
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Country of Origin : China
    • Standard : 20
    • Type : Switch
    • Load Type : CFL
    • Load Type : LED
    • Amperage : 15.0 A
    • Load Type : Xenon
    • Standard : UL 498
    • Load Type : Halogen
    • Mounting Type : Box
    • Voltage : 120/125 V
    • Switch Type : Paddle
    • Load Type : Universal
    • Number of Gangs : 1.0
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Number of Poles : 3-Way
    • Load Type : Incandescent
    • Number of Switches : 1.0
    • Wall Plate Included : No
    • Throw Type : Single Throw
    • Requires Neutral Wire : Yes
    • Application Sector : Commercial
    • Application Sector : Residential
    • Load Rating : 15 A @ 120/125 VAC
    • Wire Connection Type : Push Wire
    • Connection Location : Back and Side
    • Wire Connection Type : Wire Terminal
    • Warranty Type : 1-Year Limited Warranty
    • Jigsaw Channel Availability : Distribution
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Special Features : Designer style, smooth quiet paddle action
