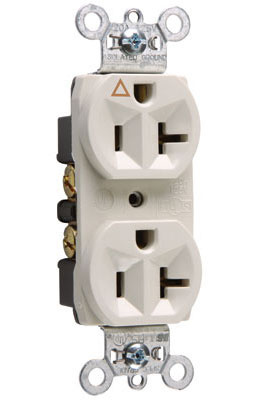

20A 125V Heavy Duty Spec-Grade Isolated Ground Duplex Receptacle, Back and Side Wire, White

ISOLATED DUPLEX 20A/120V WHITE

PSSIG5362W IG5362-W 785007045383
12.65 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A 125V Heavy Duty Spec-Grade Isolated Ground Duplex Receptacle, Back and Side Wire, White-1
  • Country of Origin: Mexico
  • Finish: Matte
Isolated Ground Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 125V
QTY
  • Product Description
  • Features
  • Specifications
Isolated Ground Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 125V
  • Features
    • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
    • Face color coding by voltage facilitates locating and mating of proper devices.
    • High-impact resistant nylon face resists impacts and scrapes.
    • Corrosion-resistant plated steel strap.
    • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
    • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Country of Origin : Mexico
    • Color : White
    • Finish : Matte
    • Product Line : Pass & Seymour
