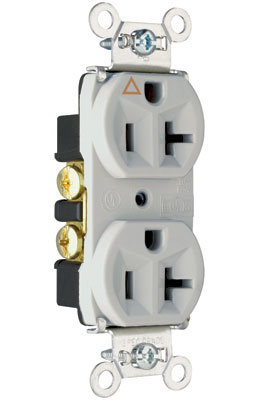

Isolated Ground Heavy-Duty Spec Grade Receptacles, Back & Side Wire, 20A, 125V, Gray

Isolated Ground Heavy-Duty Spec Grade Receptacles, Back & Side Wire, 20A, 125V, Gray

PSSIG5362GRY IG5362-GRY 785007045352
9.57 / EACH
Isolated Ground Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Gray
  • Product Description
  • Features
  • Specifications
Isolated Ground Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Gray
  • Certifications
    • Federal Spec Listed
  • Corrosion-resistant plated steel strap.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • For covering patents, see www.legrand.us/patents.
  • Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
  • Auto-ground clip assures positive ground.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • High-impact resistant nylon face resists impacts and scrapes.
  • Country Of Origin : MX
  • Environmental Conditions : Flammability: UL94 V2
  • Number of Poles : Double Pole
  • Application Sector : Commercial
  • Connection : Back and side wire
  • Number of Wires : 3.0
  • Dielectric Strength : Withstands 2000V minimum
  • NEMA Rating : 5-20R
  • Standard : UL498, CSA C22.2 No. 42
  • Certifications : CULUS,FEDSPEC
  • Product Line : Pass & Seymour
  • Amperage : 20 A
  • Special Features : IG symbol and Isolated Ground markings for easy identification and circuit delineation. Triple-wipe brass contacts ensure lasting, positive contact with plug blades. High-impact resistant nylon face resists impacts and scrapes. Corrosion-resistant plated steel strap. Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire. Auto-ground clip assures positive ground.
  • Color : Gray
  • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Voltage : 125.0 V
  • Wire Size : #14 - #10
  • Certifications
    • cULus Listed : 140596
