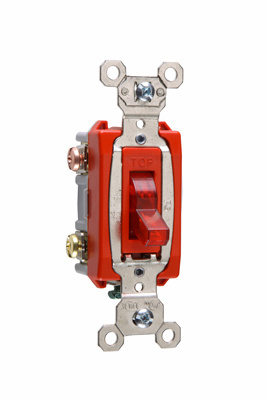

Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red

Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red

PSSPS20AC3RPL PS20AC3-RPL 785007195880
78.35 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red-1
  • Amperage: 20 A
  • Applications: Commercial, Industrial
  • Country of Origin: Mexico
  • Depth: 1.09 in
  • Finish: Matte
  • Height: 4.195 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 3
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120 V, 277 V
  • Warranty Length: 1 yr
  • Width: 1.25 in
3-Way Pilot Lighted Switch, Back and Side-Wire, 20A 120 Volt
QTY
  • Product Description
  • Features
  • Specifications
3-Way Pilot Lighted Switch, Back and Side-Wire, 20A 120 Volt
  • Features
    • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
    • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
    • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
    • Heavy-duty bumper pads for quiet operation.
    • High strength thermoplastic polycarbonate toggle.
    • Back body made of glass-reinforced nylon.
    • Locking support provides resistance to face and back body separation.
    • Oversized silver alloy contacts for long life and better heat dissipation.
    • Grounding terminal is standard.
    • Shallow design for ease of installation.
    • Strap nickel-plated steel with integral ground.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Depth : 1.09 in
    • Height : 4.195 in
    • Type : Switch
    • Width : 1.25 in
    • Load Type : CFL
    • Country of Origin : Mexico
    • Load Type : LED
    • Standard : UL 20
    • Amperage : 20.0 A
    • Load Type : Xenon
    • Voltage : 120 VAC
    • Voltage : 277 VAC
    • Standard : FEDSPEC
    • Load Type : Halogen
    • Number of Gangs : 1
    • Switch Type : Toggle
    • Load Type : Universal
    • Features : Pilot Light
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Number of Poles : 3-Way
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Wall Plate Included : No
    • Throw Type : Double Throw
    • Requires Neutral Wire : No
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Load Rating : 20 A @ 120/277 VAC
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Color : Red
    • Finish : Matte
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Special Features : High strength toggle, heavy duty toggle bumpers, locking support
