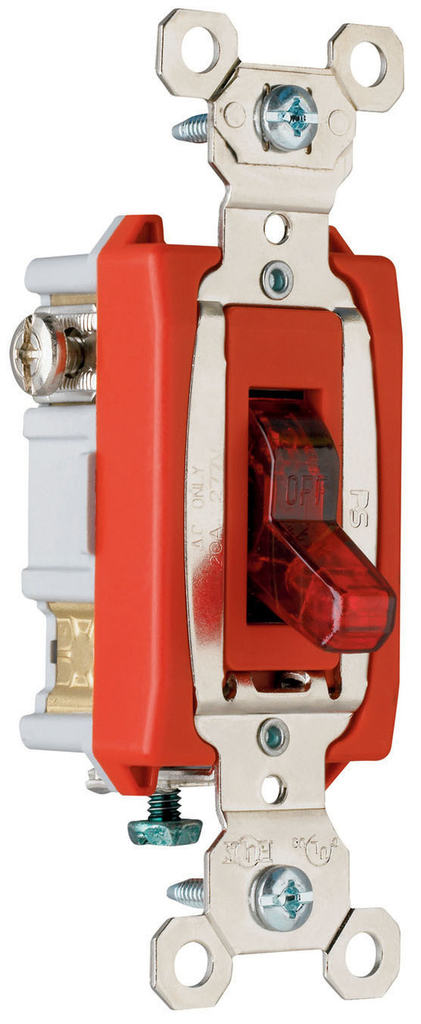

Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red

Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red

PSSPS20AC1RPL PS20AC1-RPL 785007195842
53.03 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Red-1
  • Amperage: 20 A
  • Applications: Commercial, Industrial
  • Country of Origin: Mexico
  • Depth: 1.073 in
  • Finish: Matte
  • Height: 3.281 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 1
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
1-Pole Pilot Lighted Switch, Back and Side-Wire, 20A 277V
QTY
  • Features
  • Specifications
  • Features
    • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
    • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
    • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
    • Heavy-duty bumper pads for quiet operation.
    • High strength thermoplastic polycarbonate toggle.
    • Back body made of glass-reinforced nylon.
    • Locking support provides resistance to face and back body separation.
    • Oversized silver alloy contacts for long life and better heat dissipation.
    • Grounding terminal is standard.
    • Shallow design for ease of installation.
    • Strap nickel-plated steel with integral ground.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Depth : 1.073 in
    • Type : Switch
    • Height : 3.281 in
    • Load Type : CFL
    • Width : 1.32 in
    • Country of Origin : Mexico
    • Load Type : LED
    • Amperage : 20.0 A
    • Load Type : Xenon
    • Voltage : 120 VAC
    • Standard : FEDSPEC
    • Load Type : Halogen
    • Number of Gangs : 1
    • Standard : UL 498/20
    • Switch Type : Toggle
    • Load Type : Universal
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Wall Plate Included : No
    • Throw Type : Single Throw
    • Requires Neutral Wire : No
    • Features : Chemical Resistant
    • Number of Poles : Single Pole
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Load Rating : 20 A @ 120/277 VAC
    • Horsepower Rating : 1 HP @ 120 VAC
    • Horsepower Rating : 2 HP @ 240 VAC
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Color : Red
    • Finish : Matte
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Special Features : Lighted when off, back & side wire, locking support heavy duty toggle
