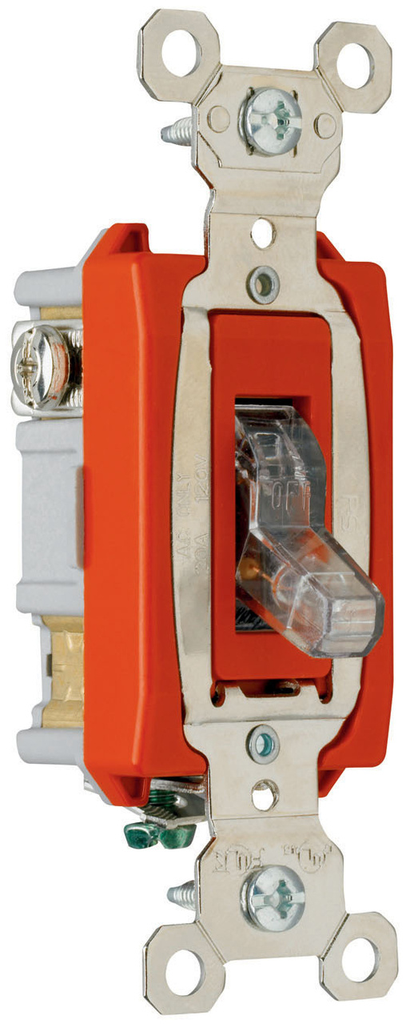

Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Clear

20A 120VAC B+S WIRE SP PILOT

PSSPS20AC1CPL PS20AC1CPL 785007195835
0.00 / EACH
http://schema.org/OutOfStock
  • Color: Clear
  • Country of Origin: Mexico
QTY
  • Product Description
  • Features
  • Specifications
1-Pole Pilot Lighted Switch, Back and Side-Wire, 20A 277V
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Features
    • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
    • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
    • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
    • Heavy-duty bumper pads for quiet operation.
    • High strength thermoplastic polycarbonate toggle.
    • Back body made of glass-reinforced nylon.
    • Locking support provides resistance to face and back body separation.
    • Oversized silver alloy contacts for long life and better heat dissipation.
    • Grounding terminal is standard.
    • Shallow design for ease of installation.
    • Strap nickel-plated steel with integral ground.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Specifications
    • Country of Origin : Mexico
    • Color : Clear
    • Product Line : Pass & Seymour
