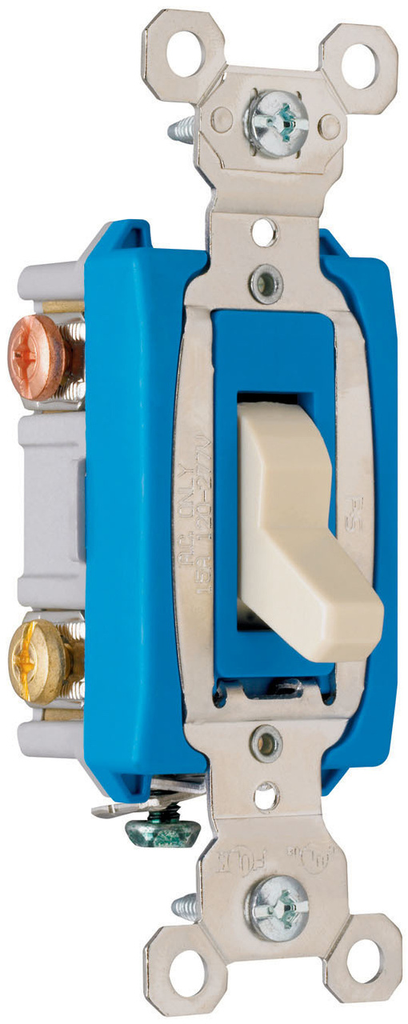

Industrial Extra Heavy-Duty Specification Grade Switch, Ivory

Industrial Extra Heavy-Duty Specification Grade Switch, Ivory

PSSPS15AC3I PS15AC3-I 785007196566
11.30 / EACH
  • Amperage: 15 A
  • Certifications: CULUS, FEDSPEC
  • Color: Ivory
  • Country of Origin: Mexico
  • Number of Poles: 3
  • Voltage: 120.0 V
  • Wattage: 3 W
3way Toggle Switch, Back & Side Wire, 15amp 120/277volt, Gray
  • Product Description
  • Features
  • Specifications
3way Toggle Switch, Back & Side Wire, 15amp 120/277volt, Gray
  • Oversized silver-alloy contacts for long life and better heat dissipation.
  • Shallow design for easier installation.
  • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
  • One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • One-piece nickel-plated brass strap for superior corrosion-resistance.
  • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
  • Grounding terminal is standard with screw-pressure plate back wire.
  • Cam control and spring actuator for positive ''makes and breaks.''
  • Locking support provides resistance to face and back body separation.
  • Impact- and chemical-resistant cover.
  • Auto-ground clip assures positive ground.
  • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
  • Heavy-duty bumpers for quiet, smooth operation.
  • Certifications
    • Federal Spec Listed
  • Certifications
    • cULus Listed : 140597
  • Amperage : 15.0 A
  • Country Of Origin : MX
  • Closed Contact Resistance : Toggle
  • Special Features : High strength toggle, heavy duty toggle bumpers, locking support
  • Certifications : FEDSPEC,CULUS
  • Color : Ivory
  • Standard : UL 20
  • Voltage : 120.0 V
  • Contact Rating : 15amp, 120/277vac
  • Wattage : 3.0 W
  • Application Sector : Industrial
  • Number of Poles : 3-Way
  • Product Line : Pass & Seymour
