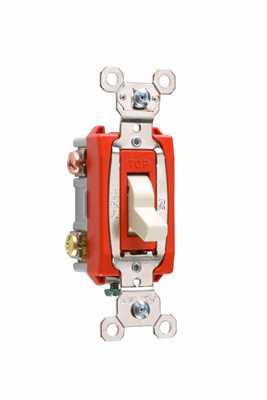

Industrial Extra Heavy Duty Specification Grade Switch, Clear

20A 120/277VAC B+S WIRE 3W LIG

PSSPS20AC3CSL PS20AC3-CSL 785007195767
89.14 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Industrial Extra Heavy Duty Specification Grade Switch, Clear-1
  • Amperage: 20 A
  • Applications: Commercial, Industrial
  • Country of Origin: Mexico
  • Depth: 1.073 in
  • Finish: Matte
  • Height: 3.281 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 3
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120 V, 277 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
3-Way Lighted Switch, Back and Side-Wire, 20A 120/277V
QTY
  • Product Description
  • Features
  • Specifications
3-Way Lighted Switch, Back and Side-Wire, 20A 120/277V
  • Features
    • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
    • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
    • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
    • Heavy-duty bumper pads for quiet operation.
    • High strength thermoplastic polycarbonate toggle.
    • Back body made of glass-reinforced nylon.
    • Locking support provides resistance to face and back body separation.
    • Oversized silver alloy contacts for long life and better heat dissipation.
    • Grounding terminal is standard.
    • Shallow design for ease of installation.
    • Strap nickel-plated steel with integral ground.
    • Auto-grounded clip assures posititive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Depth : 1.073 in
    • Type : Switch
    • Height : 3.281 in
    • Width : 1.32 in
    • Load Type : CFL
    • Country of Origin : Mexico
    • Load Type : LED
    • Standard : UL 20
    • Amperage : 20.0 A
    • Load Type : Xenon
    • Voltage : 120 VAC
    • Voltage : 277 VAC
    • Standard : FEDSPEC
    • Load Type : Halogen
    • Number of Gangs : 1
    • Switch Type : Toggle
    • Load Type : Universal
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Number of Poles : 3-Way
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Wall Plate Included : No
    • Throw Type : Double Throw
    • Requires Neutral Wire : No
    • Features : Chemical Resistant
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Load Rating : 20 A @ 120/277 VAC
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Special Features : High strength toggle, heavy duty toggle bumpers, locking support
    • Color : Clear
    • Finish : Matte
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
