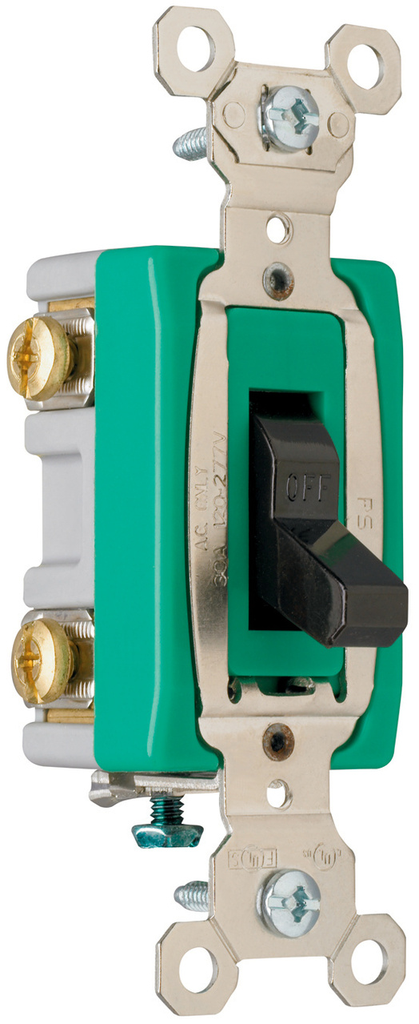

Industrial Extra Heavy-Duty Specification Grade Switch, Brown

Industrial Extra Heavy-Duty Specification Grade Switch, Brown

PSSPS30AC2 PS30AC2 785007195545
50.68 / EACH
  • Amperage: 30.0 A
  • Certifications: FEDSPEC
  • Country of Origin: Mexico
  • Number of Poles: 2
  • Voltage: 120.0 V
2pole Toggle Switch, Back & Side Wire, 30amp 120/277volt, White
  • Product Description
  • Features
  • Specifications
2pole Toggle Switch, Back & Side Wire, 30amp 120/277volt, White
  • Certifications
    • Federal Spec Listed
  • For covering patents, see www.legrand.us/patents.
  • Grounding terminal is standard.
  • High strength thermoplastic polycarbonate toggle.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Heavy-duty bumper pads for quiet operation.
  • Shallow design for ease of installation.
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Strap nickel-plated steel with integral ground.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Auto-ground clip assures positive ground.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Locking support provides resistance to face and back body separation.
  • Back body made of glass-reinforced nylon.
  • Voltage : 120.0 V
  • Certifications : CULUS,FEDSPEC
  • Special Features : Heavy duty switch, back & side wire, with lock
  • Standard : UL20
  • Actuator : Toggle
  • Product Line : Pass & Seymour
  • Amperage : 30.0 A
  • Color : Brown
  • Application Sector : Residential/Commercial
  • Action : DP
  • Country Of Origin : MX
  • Number of Poles : Double Pole
  • Certifications
    • cULus Listed : 140597
