PASS & SEYMOUR

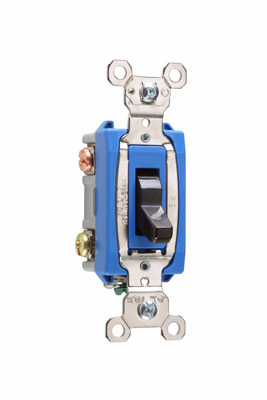

Industrial Extra Heavy Duty Specification Grade Switch, Brown

15A 120/277VAC B+S WIRE 3W SW

PSSPS15AC3 PS15AC3 785007196542
0.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Industrial Extra Heavy Duty Specification Grade Switch, Brown-1
  • Amperage: 15 A
  • Applications: Commercial, Industrial
  • Country of Origin: Mexico
  • Depth: 1.073 in
  • Finish: Matte
  • Height: 3.281 in
  • Indoor/Outdoor: Indoor
  • Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Gangs: 1
  • Number of Poles: 3
  • Number of Switches: 1
  • Switch Type: Toggle
  • Type: Switch
  • Voltage: 120 V, 277 V
  • Warranty Length: 1 yr
  • Width: 1.32 in
3-Way Toggle Switch, Back and Side-Wire, 15A 120/277V
QTY
  • Product Description
  • Features
  • Specifications
3-Way Toggle Switch, Back and Side-Wire, 15A 120/277V
  • Features
    • One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
    • Impact- and chemical-resistant cover.
    • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
    • One-piece nickel-plated brass strap for superior corrosion-resistance.
    • Auto-ground clip assures positive ground.
    • Cam control and spring actuator for positive ''makes and breaks.''
    • Heavy-duty bumpers for quiet, smooth operation.
    • Locking support provides resistance to face and back body separation.
    • Oversized silver-alloy contacts for long life and better heat dissipation.
    • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
    • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
    • Grounding terminal is standard with screw-pressure plate back wire.
    • Shallow design for easier installation.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.073 in
    • Height : 3.281 in
    • Color : Brown
    • Finish : Matte
    • Width : 1.32 in
    • Material : Thermoplastic
    • Country of Origin : Mexico
    • Product Line : Pass & Seymour
    • Type : Switch
    • Load Type : CFL
    • Load Type : LED
    • Standard : UL 20
    • Amperage : 15.0 A
    • Load Type : Xenon
    • Voltage : 120 VAC
    • Voltage : 277 VAC
    • Standard : FEDSPEC
    • Load Type : Halogen
    • Number of Gangs : 1
    • Switch Type : Toggle
    • Load Type : Universal
    • Indoor/Outdoor : Indoor
    • Load Type : Fluorescent
    • Number of Poles : 3-Way
    • Load Type : Incandescent
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Wall Plate Included : No
    • Throw Type : Double Throw
    • Requires Neutral Wire : No
    • Features : Chemical Resistant
    • Application Sector : Commercial
    • Application Sector : Industrial
    • Load Rating : 15 A @ 120/277 VAC
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Terminal Accommodation : #14 AWG - #10 AWG
    • Special Features : High strength toggle, heavy duty toggle bumpers, locking support
