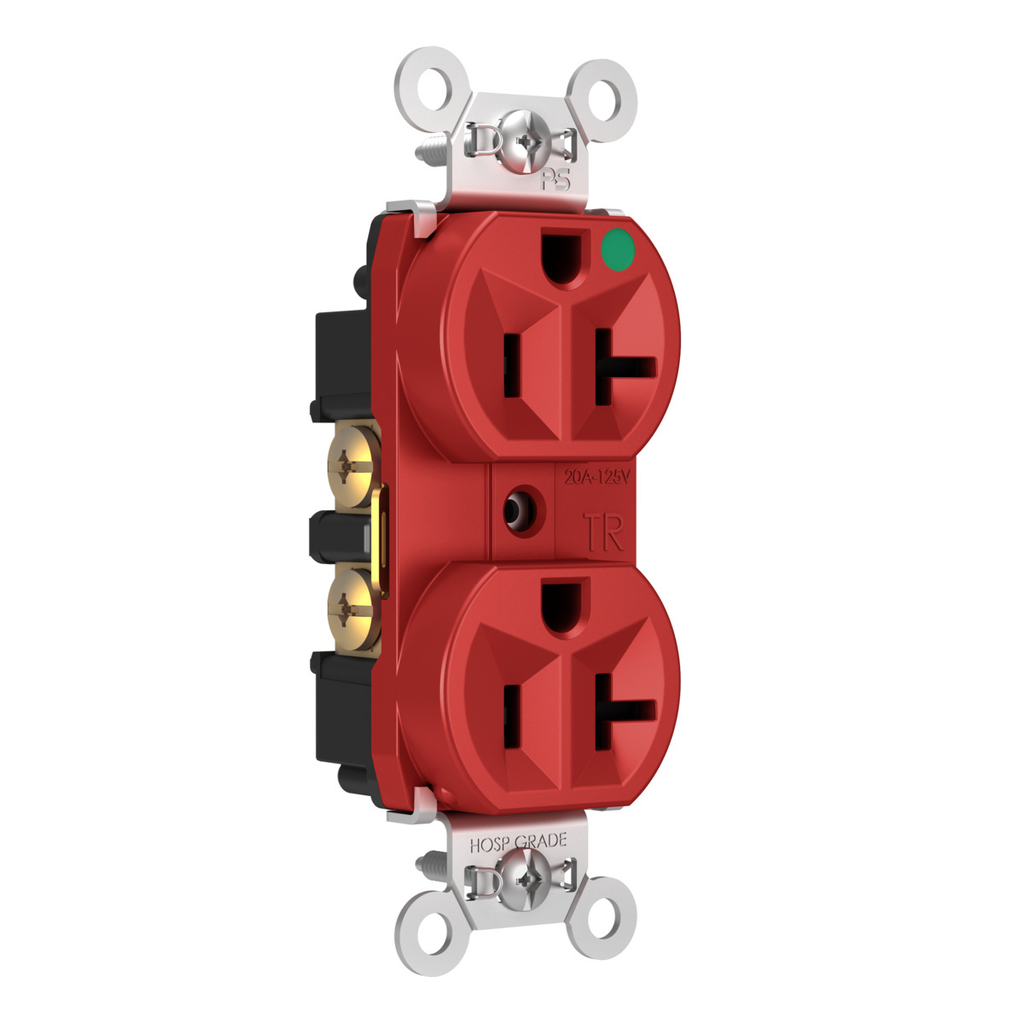

Hospital-Grade Tamper-Resistant Compact Design Receptacle, Back & Side Wire, 20A, 125V, Red

TR COMPCT HG DUP REC 20A 125V

PSSTR8300HRED TR-8300HRED 785007035179
10.84 / EACH
  • Amperage: 20 A
  • Country of Origin: Mexico
  • NEMA: 5-20R
  • Number of Phases: 1
  • Number of Poles: 2
  • Number of Wires: 3
  • Voltage: 125.0 V
Hospital-Grade Tamper-Resistant Compact Design Receptacle, Back & Side Wire, 20amp, 125volt, BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
  • Product Description
  • Features
  • Specifications
Hospital-Grade Tamper-Resistant Compact Design Receptacle, Back & Side Wire, 20amp, 125volt, BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
  • Certifications
    • cULus Listed
  • Terminal compartments isolated from each other for positive conductor containment.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
  • Tri-drive terminal and mounting screws.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Easily accessible break-off line contact connecting tab for split circuit wiring.
  • High strength thermoplastic back body.
  • Compact design for easy installation.
  • Corrosion-resistant, zinc-plated steel strap is locked in."
  • For covering patents, see www.legrand.us/patents."
  • Impact-resistant nylon face.
  • .032-inch thick brass, triple-wipe power contacts for lasting retention."
  • One-piece heat-treated triple-wipe brass power contacts.
  • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
  • Auto-ground clip assures positive ground.
  • Meets National Electrical Code Tamper-Resistant requirements.
  • Wire Size : #14 -#10 AWG Copper Conductor Only
  • Country of Origin : MX
  • Amperage : 20 A
  • Number of Wires : 3.0
  • Standard : CSA Listed, UL Listed, FSUL
  • Phase : Single
  • Environmental Conditions : UL94 V2
  • NEMA Rating : 5-20R
  • Number of Poles : Double Pole
  • Dielectric Strength : Withstands 2000V minimum
  • Special Features : Built for the harshest medical environments, Pass&Seymour power indicating receptacles feature two industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacle&mdash:even with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety.
  • Voltage : 125.0 V
  • Connection : Side & Back Wired
  • Application Sector : Hospital Grade
  • Temperature Rating : Maximum continuous +60°C, minimum -40° without impact
  • Color : Red
  • Product Line : Pass & Seymour
