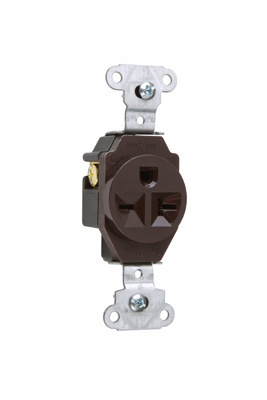

Heavy-Duty Spec Grade Single Receptacles, Side Wire, 20A, 250V, Brown

RECP SGL 20A 250V S-WIRE

PSS5851 5851 785007585100
7.33 / EACH
  • Amperage: 20 A
  • Country of Origin: Mexico
  • NEMA: 6-20R
  • Number of Poles: 2
  • Number of Wires: 3
  • Voltage: 250.0 V
Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, White
  • Product Description
  • Features
  • Specifications
Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, White
  • Certifications
    • cULus Listed
  • For covering patents, see www.legrand.us/patents."
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • One-piece brass triple-wire power contacts for lasting retention.
  • Auto-ground clip assures positive ground.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength."
  • Number of Wires : 3.0
  • Standard : UL498, CSA C22.2 No. 42
  • Wire Size : #14 - #10
  • Country of Origin : MX
  • Number of Poles : Double Pole
  • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • NEMA Rating : 6-20R
  • Amperage : 20 A
  • Voltage : 250.0 V
  • Dielectric Strength : Withstands 2000V minimum
  • Application Sector : Commercial
  • Special Features : Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.
  • Connection : Back and side wire
  • Environmental Conditions : Flammability: UL94 V2
  • Color : Brown
  • Product Line : Pass & Seymour
