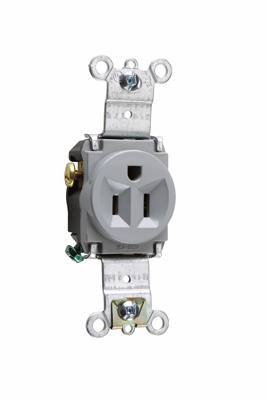

Heavy Duty Spec Grade Single Receptacles, Back and Side Wire, 15A, 125V, Gray

RECP SGL 15A 125V S+B WIRE GRY

PSS5261GRY 5261-GRY 785007526134
20.63 / EACH
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Applications: Commercial
  • Connection Type: Back Wire, Side Wire
  • Dielectric Strength: 2000 V
  • NEMA: 5-15R
  • Number of Poles: 2
  • Number of Wires: 3
  • Temperature Rating: 150 %, 30 °C, -40 °C, 60 °C
  • Voltage: 125.0 V
  • Wire Size: 10 AWG, 14 AWG
Heavy-Duty Spec Grade Single Receptacle Back and Side-Wire 15A 125V
QTY
  • Product Description
  • Features
  • Specifications
Heavy-Duty Spec Grade Single Receptacle Back and Side-Wire 15A 125V
  • Features
    • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
    • One-piece brass, triple-wipe power contacts for lasting retention.
    • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
    • Impact-resistant nylon face and thermoplastic back body.
    • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
    • Terminal compartments isolated from each other for positive conductor containment.
    • Tri-drive terminal and mounting screws.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Certifications
    • cUL Listed
    • Federal Spec Listed
  • Specifications
    • Country of Origin : Mexico
    • Special Features : Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. One-piece brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
    • Color : Gray
    • Product Line : Pass & Seymour
    • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    • Amperage : 15 A
    • NEMA Rating : 5-15R
    • Voltage : 125.0 V
    • Number of Wires : 3.0
    • Wire Size : #14 - #10
    • Application Sector : Commercial
    • Number of Poles : Double Pole
    • Standard : UL498, CSA C22.2 No. 42
    • Connection : Back and side wire
    • Environmental Conditions : Flammability: UL94 V2
    • Dielectric Strength : Withstands 2000V minimum
