PASS & SEYMOUR

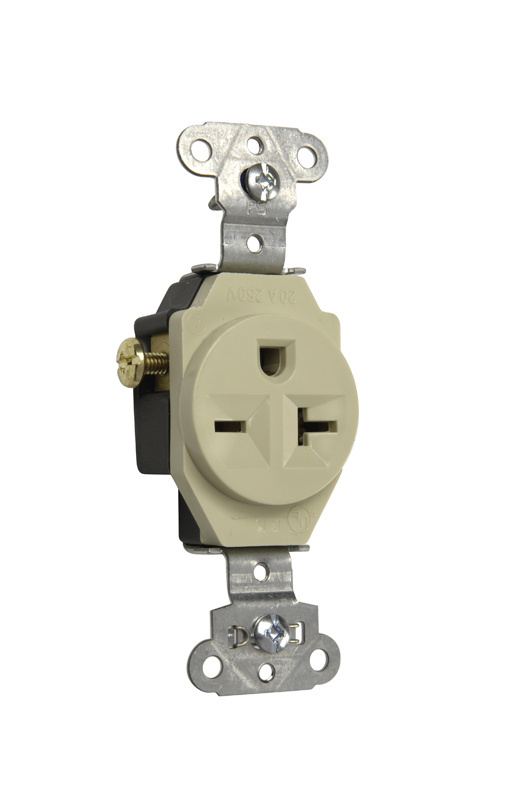

Heavy-Duty Spec Grade Single Receptacle, Side Wire, 20A, 250V, Ivory

SINGLE RECEPT 20A 250V IVORY

PSS5851I 5851-I 785007585117
6.72 / EACH
  • Amperage: 20 A
  • Certifications: CULUS
  • Color: Ivory
  • Country of Origin: Mexico
  • NEMA: 6-20R
  • Number of Poles: 2
  • Number of Wires: 3
  • Voltage: 250.0 V
Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, White
  • Product Description
  • Features
  • Specifications
Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, White
  • Auto-ground clip assures positive ground.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Certifications
    • cULus Listed : 140596
  • Connection : Wire Ground
  • Application Sector : Residential/Commercial
  • Color : Ivory
  • Certifications : CULUS
  • Wire Size : 4 AWG
  • Special Features : Auto ground clip, back & side wire, zinc steel strap
  • Country Of Origin : MX
  • Standard : UL 498
  • Number of Poles : Double Pole
  • Product Line : Pass & Seymour
  • Amperage : 20 A
  • Number of Wires : 3.0
  • Voltage : 250.0 V
  • NEMA Rating : 6-20R
