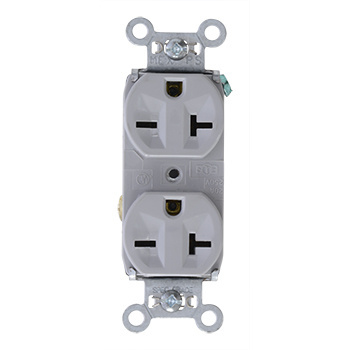

.032 inch thick, brass, triple-wipe power contacts for lasting retention.
Voltage : 250.0 V
Wire Size : #14 - #10
Number of Poles : Double Pole
Environmental Conditions : Flammability: UL94 V2
Special Features : Heavy-duty, brass strap for added strength and ground conductivity. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. High strength nylon face. Internal screw-pressure-plate back and side wired to accept #14 – #10 AWG stranded or solid copper or copper-clad conductors. Eight back wire holes. Auto-ground clip assures positive ground.
Certifications : FEDSPEC,CULUS
Country Of Origin : MX
NEMA Rating : 6-20R
Dielectric Strength : Withstands 2000V minimum
Amperage : 20 A
Product Line : Pass & Seymour
Number of Wires : 3.0
Color : Gray
Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
