PASS & SEYMOUR

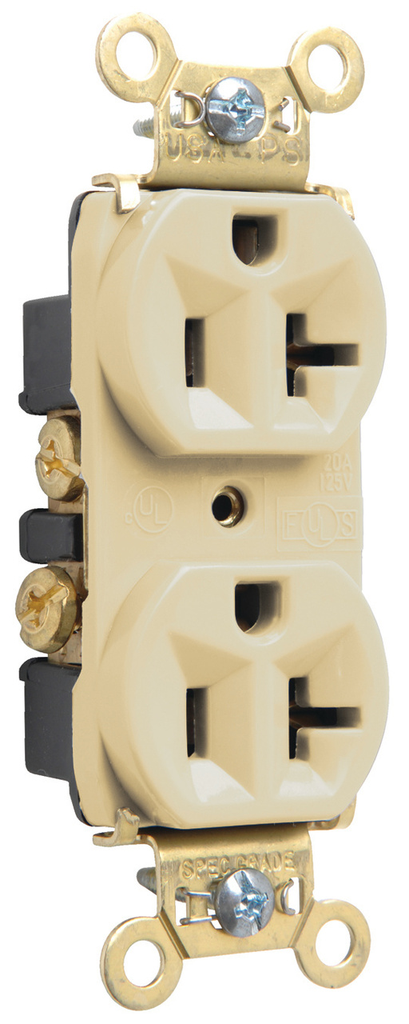

Heavy-Duty Spec Grade Receptacles, Back & Side Wire, 20A, 125V, Ivory

HEAVY DUTY DUP REC 20A 125VAC

PSSPS5362I PS5362-I 785007859935
4.54 / EACH
  • Amperage: 20 A
  • Country of Origin: Mexico
  • NEMA: 5-20R
  • Number of Poles: 2
  • Number of Wires: 3
  • Voltage: 125.0 V
Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Brown
  • Product Description
  • Features
  • Specifications
Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Brown
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring."
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention."
  • High strength nylon face.
  • Heavy-duty, brass strap for added strength and ground conductivity."
  • Auto-ground clip assures positive ground.
  • Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors.
  • Eight back wire holes.
  • For covering patents, see www.legrand.us/patents."
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Color : Ivory
  • Product Line : Pass & Seymour
  • Environmental Conditions : Flammability: UL94 V2
  • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Number of Wires : 3.0
  • Voltage : 125.0 V
  • Number of Poles : Double Pole
  • Country of Origin : MX
  • Wire Size : #14 - #10
  • Connection : Back and side wire
  • Special Features : Heavy-duty, brass strap for added strength and ground conductivity. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around face to prevent strap from separating from face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. High strength nylon face. Internal screw-pressure-plate back and side wired to accept #14 – #10 AWG stranded or solid copper or copper-clad conductors. Eight back wire holes. Auto-ground clip assures positive ground.
  • Application Sector : Commercial
  • NEMA Rating : 5-20R
  • Dielectric Strength : Withstands 2000V minimum
  • Amperage : 20 A
  • Standard : cULus UL498, CSA C22.2 No. 42
