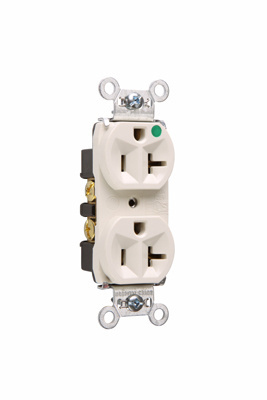

20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, Back and Side Wire, Light Almond

HOSPITAL DUPLEX 20A/125V LA

PSS8300HLA 8300-HLA 785007830170
13.99 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, Back and Side Wire, Light Almond-1
  • Amperage: 20 A
  • Applications: Commercial, Healthcare
  • Country of Origin: USA
  • Depth: 0.78 in
  • Dielectric Strength: 2000 V
  • Finish: Matte
  • Height: 3.281 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 2.0
  • Number of Wires: 3
  • Operating Temperature: 40 °F, 60 °F
  • Outlet Type: Hospital Grade, Tamper-Resistant
  • Voltage: 125.0 V
  • Warranty Length: 1 yr
  • Width: 1.322 in
  • Wire Size: 10 AWG
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and Side Wire 20A 125V
QTY
  • Product Description
  • Features
  • Specifications
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and Side Wire 20A 125V
  • Certifications
    • cULus Listed
  • Features
    • Impact-resistant nylon face.
    • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
    • Easily accessible break-off line contact connecting tab for split circuit wiring.
    • Corrosion-resistant, zinc-plated steel strap is locked in.
    • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
    • High strength thermoplastic back body.
    • Auto-ground clip assures positive ground.
    • Compact design for easy installation.
    • Tri-drive terminal and mounting screws.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Specifications
    • Depth : 0.78 in
    • Height : 3.281 in
    • Color : Light Almond
    • Width : 1.322 in
    • Finish : Matte
    • Product Line : Pass & Seymour
    • Country of Origin : United States
    • Standard : UL498
    • Amperage : 20.0 A
    • Voltage : 125.0 V
    • Standard : FEDSPEC
    • Number of Wires : 3.0
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Number of Receptacles : 2.0
    • Standard : CSA C22.2 No. 42
    • Outlet Type : Hospital Grade
    • Number of Poles : Double Pole
    • Outlet Type : Tamper-Resistant
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • NEMA Configuration Code : 5-20R
    • Connection Location : Back and Side
    • Wire Connection Type : Screw Terminals
    • Warranty Type : 1-Year Limited Warranty
    • Operating Temperature Max : 60.0 °C
    • Operating Temperature Min : -40.0 °C
    • Operating Temperature : -40°-60°C
    • Dielectric Strength : Withstands 2000V minimum
    • Wire Connection Type : Internal Pressure Plates
    • Features : Single Piece Plated Steel Mounting Strap
