PASS & SEYMOUR

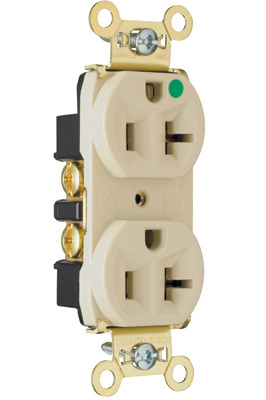

20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, Back and Side Wire, Ivory

HOSPITAL DUPLEX 20A/125V IVORY

PSS8300HI 8300-HI 785007830033
11.10 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, Back and Side Wire, Ivory-1
  • Country of Origin: Mexico
  • Finish: Matte
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and Side Wire 20A 125V
QTY
  • Product Description
  • Features
  • Specifications
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and Side Wire 20A 125V
  • Features
    • Impact-resistant nylon face.
    • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
    • Easily accessible break-off line contact connecting tab for split circuit wiring.
    • Corrosion-resistant, zinc-plated steel strap is locked in.
    • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
    • High strength thermoplastic back body.
    • Auto-ground clip assures positive ground.
    • Compact design for easy installation.
    • Tri-drive terminal and mounting screws.
    • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Country of Origin : Mexico
    • Color : Ivory
    • Finish : Matte
    • Product Line : Pass & Seymour
