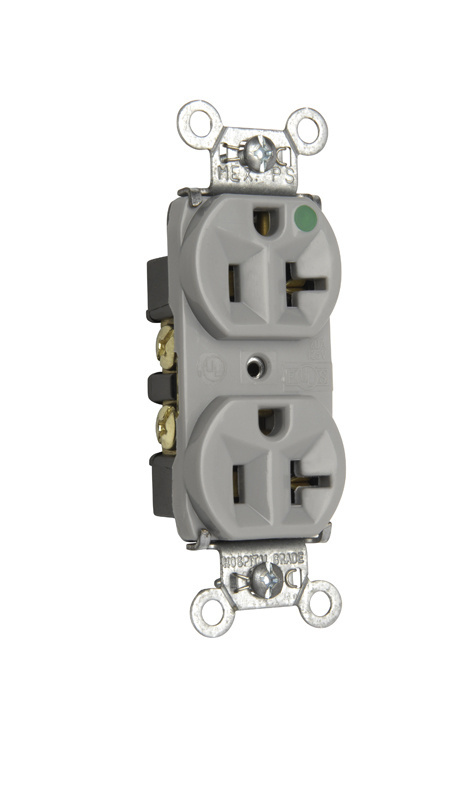

Heavy-Duty Hospital Grade Compact Design Receptacle, Back & Side Wire, 20A, 125V, Gray

Heavy-Duty Hospital Grade Compact Design Receptacle, Back & Side Wire, 20A, 125V, Gray

PSS8300HGRY 8300-HGRY 785007830026
8.67 / EACH
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back & Side Wire 20amp 125volt Brown
  • Product Description
  • Features
  • Specifications
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back & Side Wire 20amp 125volt Brown
  • Easily accessible break-off line contact connecting tab for split circuit wiring.
  • Corrosion-resistant, zinc-plated steel strap is locked in.
  • Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.
  • One-piece heat-treated triple-wipe brass power contacts.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Auto-ground clip assures positive ground.
  • Tri-drive terminal and mounting screws.
  • High strength thermoplastic back body.
  • For covering patents, see www.legrand.us/patents.
  • Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment.
  • Impact-resistant nylon face.
  • Compact design for easy installation.
  • Certifications
    • cULus Listed : 140596
    • Federal Spec Listed : WC596
  • Dielectric Strength : Withstands 2000V minimum
  • Standard : UL498, CSA C22.2 No. 42
  • Special Features : Impact-resistant nylon face. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip assures positive ground. Compact design for easy installation. Tri-drive terminal and mounting screws.
  • Amperage : 20 A
  • Certifications : CULUS,FEDSPEC
  • Voltage : 125.0 V
  • Color : Gray
  • Application Sector : Commercial
  • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Connection : Back and side wire
  • Country Of Origin : MX
  • Number of Poles : Double Pole
  • Product Line : Pass & Seymour
  • Number of Wires : 3.0
  • Wire Size : #14 - #10
  • NEMA Rating : 5-20R
  • Environmental Conditions : Flammability: UL94 V2
