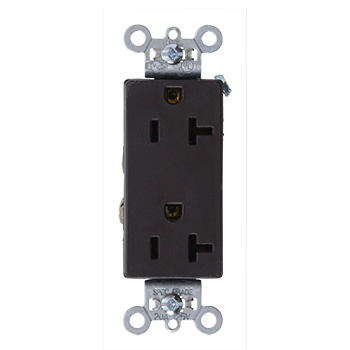

Heavy-Duty Decorator Spec Grade Receptacles, Side Wire, 20A, 125V, Brown

Heavy-Duty Decorator Spec Grade Receptacles, Side Wire, 20A, 125V, Brown

PSS26342 26342 785007785166
7.27 / EACH
Heavy-Duty Decorator Spec Grade Duplex Receptacle Side Wire 20amp 125volt Red
  • Product Description
  • Features
  • Specifications
Heavy-Duty Decorator Spec Grade Duplex Receptacle Side Wire 20amp 125volt Red
  • Tri-drive terminal and mounting screws.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • Terminal compartments isolated from each other for positive conductor containment.
  • For covering patents, see www.legrand.us/patents.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • All devices fit standard #26 opening wall plate.
  • Auto-ground clip assures positive ground
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Impact-resistant nylon face.
  • Certifications : CULUS,FEDSPEC
  • Application Sector : Commercial
  • Amperage : 20 A
  • Number of Wires : 3.0
  • Country Of Origin : MX
  • Standard : UL498, cUL CSA
  • NEMA Rating : 5-20R
  • Number of Poles : Double Pole
  • Dielectric Strength : Withstands 2000V minimum
  • Product Line : Pass & Seymour
  • Wire Size : #14 - #10
  • Environmental Conditions : Flammability: UL94 V2
  • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Special Features : Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side wire accepts #14 - #10 AWG solid or stranded wire. All devices fit standard #26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
  • Color : Brown
  • Connection : Side wire
  • Voltage : 125.0 V
  • Certifications
    • cULus Listed : 140596
    • Federal Spec Listed : WC596
