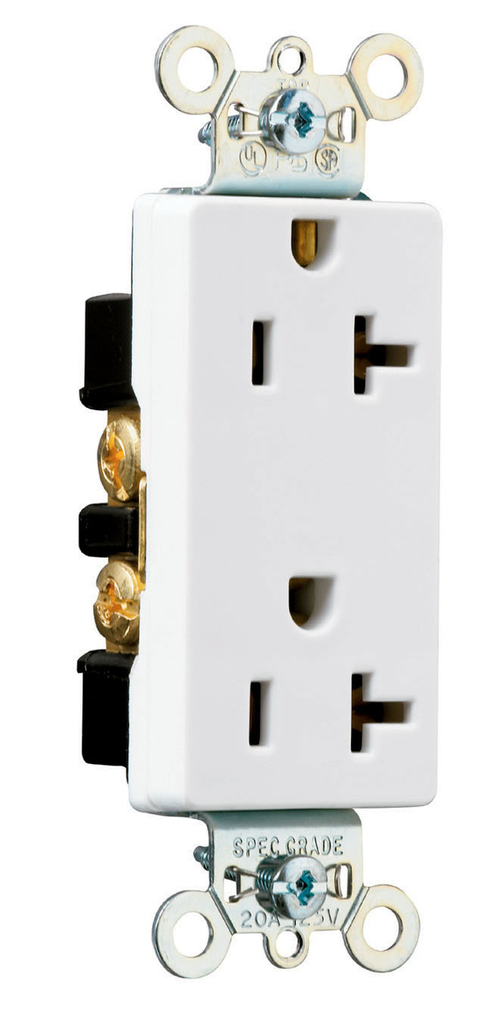

Heavy-Duty Decorator Spec Grade Receptacles, Back & Side Wire, 20A, 125V, White

Heavy-Duty Decorator Spec Grade Receptacles, Back & Side Wire, 20A, 125V, White

PSS26352W 26352-W 785007785401
30.03 / EACH
  • Amperage: 20 A
  • Certifications: FEDSPEC
  • Country of Origin: Mexico
  • NEMA: 5-20R
  • Number of Poles: 2
  • Number of Wires: 3.0
  • Voltage: 125.0 V
Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Ivory
  • Product Description
  • Features
  • Specifications
Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Ivory
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • All devices fit standard #26 opening wall plate.
  • For covering patents, see www.legrand.us/patents.
  • Tri-drive terminal and mounting screws.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Impact-resistant nylon face.
  • Certifications
    • Federal Spec Listed : WC596
    • cULus Listed : 140596
  • Special Features : Back & side wire, heavy duty compact design
  • Standard : UL 498
  • Application Sector : Residential/Commercial
  • Color : White
  • Connection : Wire Ground
  • Number of Poles : Double Pole
  • Product Line : Pass & Seymour
  • NEMA Rating : 5-20R
  • Amperage : 20 A
  • Country Of Origin : MX
  • Certifications : CULUS,FEDSPEC
  • Number of Wires : 3.0
  • Wire Size : 4 AWG
  • Voltage : 125.0 V
