PASS & SEYMOUR

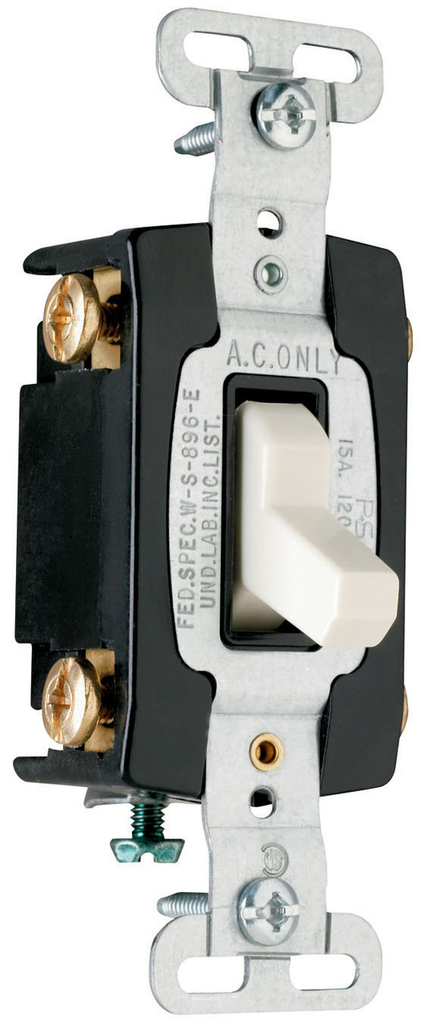

Hard Use Specification Grade Switch, Light Almond

15A 120/277 B+S WIRE COMM 4W S

PSSCSB15AC4LA CSB15AC4-LA 785007126334
13.93 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Hard Use Specification Grade Switch, Light Almond-1
  • Amperage: 15 A
  • Applications: Commercial
  • Contact Rating: 120 V, 15 A, 277 V
  • Country of Origin: Mexico
  • IsSustainable: No
  • Number of Poles: 4
  • Voltage: 120 V
  • Wattage: 4 W
Construction 4-Way Switch, Back and Side-Wire, 15A 120/277V.
QTY
  • Product Description
  • Features
  • Specifications
Construction 4-Way Switch, Back and Side-Wire, 15A 120/277V.
  • Features
    • One-piece brass alloy contact arm for reliable electrical performance.
    • Tri-drive terminal and mounting screws.
    • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
    • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
    • Heavy-duty toggle bumpers for smooth and quiet operation.
    • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
    • One-piece steel strap with integral ground is plated for corrosion resistance.
    • Oversized silver alloy contacts for longer dependable switch life.
    • For covering patents, see www.legrand.us/patents."
    • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Certifications
    • CSA Listed
    • Federal Spec Listed
    • UL Listed
  • Specifications
    • Amperage : 15.0 A
    • Product Line : Pass & Seymour
    • Country of Origin : Mexico
    • Wattage : 4.0 W
    • Closed Contact Resistance : Toggle
    • Voltage : 120.0 V
    • Number of Poles : 4-Way
    • Contact Rating : 15amp, 120/277vac
    • Standard : UL 20
    • Special Features : High strength toggle, heavy duty toggle bumpers, locking support
    • Application Sector : Commercial
