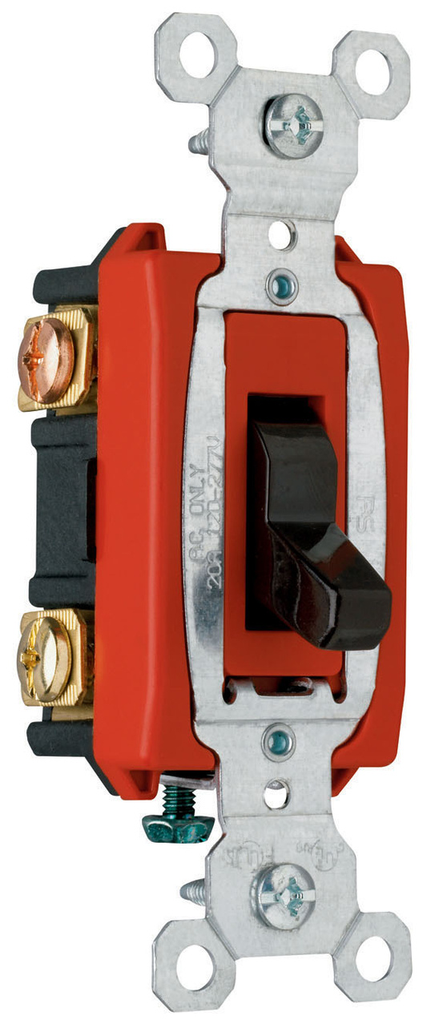

Hard Use Specification Grade Switch, Black

Hard Use Specification Grade Switch, Black

PSSCSB20AC3BK CSB20AC3-BK 785007108965
6.93 / EACH
  • Amperage: 20 A
  • Contact Rating: 120 V, 20 A, 277 V
  • Country of Origin: Mexico
  • Number of Poles: 3
  • Voltage: 120 V
  • Wattage: 3 W
Construction 3way Switch, Back & Side Wire, 20amp 120/277volt, White.
  • Product Description
  • Features
  • Specifications
Construction 3way Switch, Back & Side Wire, 20amp 120/277volt, White.
  • Features
    • One-piece brass alloy contact arm for reliable electrical performance.
    • One-piece steel strap with integral ground is plated for corrosion resistance.
    • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
    • Heavy-duty toggle bumpers for smooth and quiet operation.
    • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
    • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
    • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
    • Oversized silver alloy contacts for longer dependable switch life.
    • Tri-drive terminal and mounting screws.
    • For covering patents, see www.legrand.us/patents."
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
  • Certifications
    • Federal Spec Listed
    • cULus Listed
  • Specifications
    • Color : Black
    • Product Line : Pass & Seymour
  • Specifications
    • Country of Origin : MX
    • Standard : UL 20
    • Amperage : 20.0 A
    • Wattage : 3.0 W
    • Voltage : 120.0 V
    • Number of Poles : 3-Way
    • Application Sector : Commercial
    • Closed Contact Resistance : Toggle
    • Contact Rating : 20amp, 120/277vac
    • Special Features : High strength toggle, heavy duty toggle bumpers, locking support
