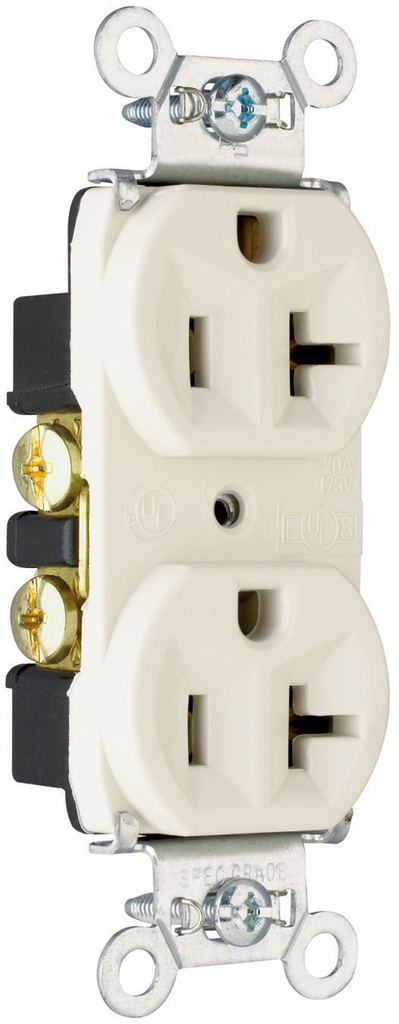

Hard Use Spec Grade Receptacle, Back & Side Wire, 20A, 125V, White

Hard Use Spec Grade Receptacle, Back & Side Wire, 20A, 125V, White

PSS5362W 5362-W 785007536256
4.76 / EACH
  • Amperage: 20 A
  • Certifications: FEDSPEC
  • Country of Origin: Mexico
  • NEMA: 5-20R
  • Number of Poles: 2
  • Number of Wires: 3
  • Voltage: 125.0 V
eHard Use Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Yellow
  • Product Description
  • Features
  • Specifications
eHard Use Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Yellow
  • Auto-ground clip assures positive ground.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Terminal compartments isolated from each other for positive conductor containment.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Color : White
  • Number of Wires : 3.0
  • Voltage : 125.0 V
  • Standard : UL 498
  • Connection : Wire Ground
  • NEMA Rating : 5-20R
  • Number of Poles : Double Pole
  • Special Features : Corrosion-resistant, easy access break off tab for fast connection, 8 hole internal screw pressure plate
  • Wire Size : 4 AWG
  • Certifications : CULUS,FEDSPEC
  • Amperage : 20 A
  • Product Line : Pass & Seymour
  • Country Of Origin : MX
  • Certifications
    • Federal Spec Listed : WC596
    • cULus Listed : 140596
