PASS & SEYMOUR

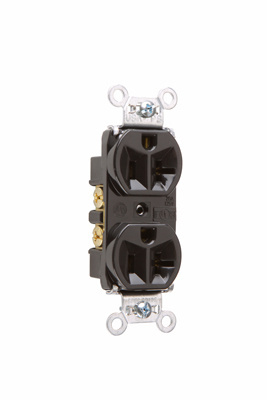

Hard Use Spec Grade Receptacle, Back and Side Wire, 20A, 125V, Brown

Hard Use Spec Grade Receptacle, Back and Side Wire, 20A, 125V, Brown

PSS5362 5362 785007536201
5.99 / EACH
http://schema.org/OutOfStock
  • Amperage: 20 A
  • Connection Type: Wire Ground
  • Country of Origin: Mexico
  • NEMA: 5-20R
  • Number of Poles: 2
  • Number of Wires: 3
  • Voltage: 125.0 V
  • Wire Size: 4 AWG
eHard Use Spec Grade Duplex Receptacle Back and Side-Wire 20A 125V Yellow
QTY
  • Product Description
  • Features
  • Specifications
eHard Use Spec Grade Duplex Receptacle Back and Side-Wire 20A 125V Yellow
  • Features
    • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly."
    • .032 inch thick, brass, triple-wipe power contacts for lasting retention."
    • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring."
    • Impact-resistant nylon face.
    • 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
    • Terminal compartments isolated from each other for positive conductor containment.
    • Tri-drive terminal and mounting screws.
    • Auto-ground clip assures positive ground.
    • For covering patents, see www.legrand.us/patents."
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Country of Origin : MX
    • Amperage : 20 A
    • Standard : UL 498
    • Wire Size : 4
    • NEMA Rating : 5-20R
    • Voltage : 125.0 V
    • Number of Wires : 3.0
    • Connection : Wire Ground
    • Number of Poles : Double Pole
    • Special Features : Corrosion-resistant, easy access break off tab for fast connection, 8 hole internal screw pressure plate
  • Specifications
    • Color : Brown
    • Product Line : Pass & Seymour
