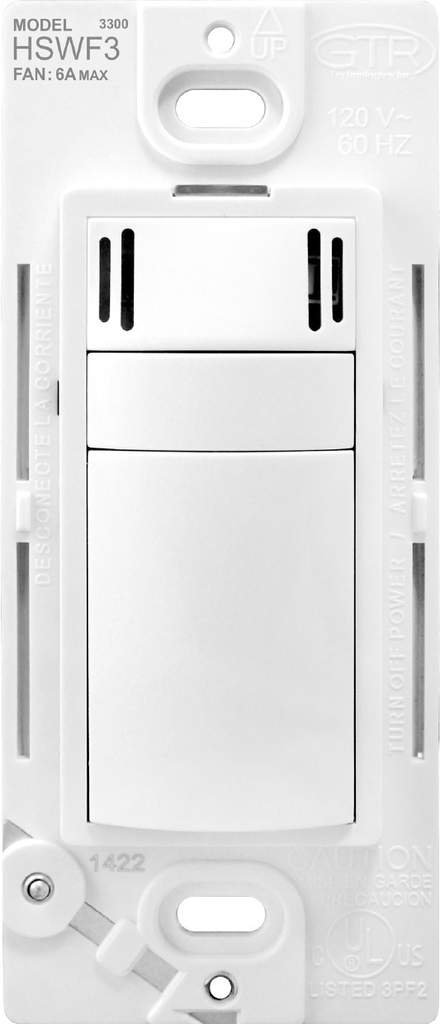

Humidity Based Fan Control, White

HUMIDITY SENSOR FAN ONLY 120V

PSSHSWF3W HSWF3W 785007057393
72.07 / EA
http://schema.org/OutOfStock
Mayer-DDS-Humidity Based Fan Control, White-1
  • Applications: Hospitality, Light Commercial, Multi-Dwelling Unit, Residential
  • Country of Origin: China
  • Finish: Matte
  • Frequency: 60 Hz
  • Indoor/Outdoor: Indoor
  • Load Type: AC Fan Motor
  • Material: Thermoplastic
  • Mounting Type: Wall Box
  • Number of Poles: 1
  • Number of Switches: 1
  • Switch Type: Push
  • Type: Fan Speed Control
  • Voltage: 120 V
  • Warranty Length: Limited Lifetime
  • Wire Size: 12 AWG
Humidity Based Fan Control, HSW, adds intelligent moisture detection to any fan or ventilation system.
QTY
  • Product Description
  • Features
  • Specifications
Humidity Based Fan Control, HSW, adds intelligent moisture detection to any fan or ventilation system.
  • Features
    • Turns ON the fan when condensation is present and OFF when dry.
    • Adjusts sensors to solve moisture problems.
    • Helps fight mold.
    • Ultra moisture-sensing adaptive technology (patented).
    • Manual timer settings from 5-60 minutes.
    • Great for tenant and family use.
    • Manual fan control for immediate ventilation.
    • Manual bathroom lighting control (HSWC only).
    • Lets you know the fan is ON.
    • Tamper-proof settings cover.
  • Certifications
    • cULus Listed
  • Specifications
    • Country of Origin : China
    • Preset : Yes
    • Standard : RoHS
    • Voltage : 120 VAC
    • Switch Type : Push
    • Color : White
    • Finish : Matte
    • Material : Thermoplastic
    • Product Line : Pass & Seymour
    • Indoor/Outdoor : Indoor
    • Frequency Rating : 60 Hz
    • Load Type : AC Fan Motor
    • Mounting Type : Wall Box
    • Number of Switches : 1.0
    • Type : Fan Speed Control
    • Wire Size : #14 - #12 AWG
    • Features : Indicator Lights
    • Requires Neutral Wire : Yes
    • Timing Range : 5-60 minutes
    • Number of Poles : Single Pole
    • Features : Humidity Fan Control
    • Application Sector : Hospitality
    • Application Sector : Residential
    • Load Rating : 120V 6A (FAN MOTOR)
    • Wire Connection Type : Flying Leads
    • Application Sector : Light Commercial
    • Dimming Compatibility : Fan Speed Only
    • Application Sector : Multi-Dwelling Unit
    • Warranty Type : Limited Lifetime Warranty
    • Special Features : Humidity Based Fan Control, HSW, adds intelligent moisture detection to any fan or ventilation system. HSW senses condensation levels in the air, turns on the fan or ventilation system, and runs it until the room is back to a safe moisture level. HSW has adjustable timer settings for manual time use and adjustable condensation for sensitivity. The capability to adjust the sensitivity level on HSW enables the end user to truly tailor their fan or ventilation system to any environment regardless of room size, climate or season.
