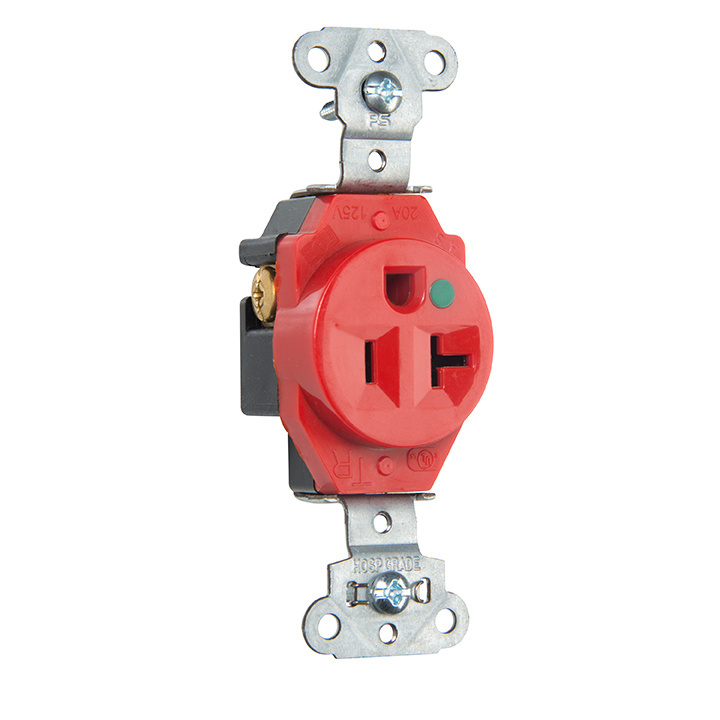

Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, Red

HG REC SGL TR B&S WRE 20A/125V

PSSTR8301RED TR8301RED 785007030877
49.13 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Hospital Grade Single Receptacles Tamper Resistant, Back and Side Wire, 20A, 125V, Red-1
  • Amperage: 20 A
  • Applications: Commercial, Healthcare
  • Country of Origin: Mexico
  • Depth: 1.093 in
  • Height: 1.68 in
  • Indoor/Outdoor: Indoor
  • Number of Poles: 2
  • Number of Receptacles: 1.0
  • Number of Wires: 3
  • Outlet Type: Hospital Grade, Straight Blade, Tamper-Resistant
  • Voltage: 125.0 V
  • Width: 1.32 in
  • Wire Size: 10 AWG
Hospital Grade Single Receptacles Tamper-Resistant, Back and Side-Wire, 20A, 125A
QTY
  • Product Description
  • Features
  • Specifications
Hospital Grade Single Receptacles Tamper-Resistant, Back and Side-Wire, 20A, 125A
  • Certifications
    • Federal Spec Listed
    • cULus Listed
  • Features
    • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
    • Tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility.
    • Dual mechanical shutter system to help prevent insertion of foreign objects.
    • Heavy-duty, zinc-plated steel strap for added strength.
    • Strap tabs wrap around face to prevent strap from separating from face and back body.
    • Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.
    • Auto-ground eliminates the necessity to terminate grounding conductor to device
    • For covering patents, see www.legrand.us/patents.
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Specifications
    • Depth : 1.093 in
    • Height : 1.68 in
    • Color : Red
    • Product Line : Pass & Seymour
    • Width : 1.32 in
    • Amperage : 20.0 A
    • Country of Origin : Mexico
    • Voltage : 125.0 V
    • Standard : FEDSPEC
    • Number of Wires : 3.0
    • Indoor/Outdoor : Indoor
    • Wire Size : 14 - 10 AWG
    • Wall Plate Included : No
    • Is Tamper-Resistant : Yes
    • Number of Receptacles : 1.0
    • Outlet Type : Hospital Grade
    • Outlet Type : Straight Blade
    • Number of Poles : Double Pole
    • Outlet Type : Tamper-Resistant
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • NEMA Configuration Code : 5-20R
    • Connection Location : Back and Side
    • Wire Connection Type : Internal Pressure Plates
    • Features : Single Piece Plated Steel Mounting Strap
