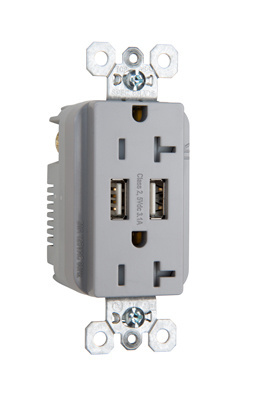

20A 125V Fed Spec-Grade Tamper-Resistant USB Type A/A Outlet, Gray

3.1 USB & 20A GRY DUPLEX

PSSTR5362USBGRY TR-5362USBGRY 785007031850
43.41 / EACH
http://schema.org/OutOfStock
  • Amperage: 20 A
  • Applications: Commercial
  • Country of Origin: China
  • Dielectric Strength: 2000 V
  • Finish: Matte
  • IsSustainable: No
  • Temperature Rating: 60 °C
  • Voltage: 125.0 V
  • Wire Size: 10 AWG, 14 AWG
Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
QTY
  • Product Description
  • Features
  • Specifications
Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
  • Features
    • Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
    • One-piece heat-treated triple-wipe brass power contacts.
    • AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.
    • Multiple color options available.
    • Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.
    • Stainless steel auto-ground clips assure positive ground.
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Country of Origin : China
    • Amperage : 20.0 A
    • Voltage : 125.0 V
    • Is Tamper-Resistant : Yes
    • Application Sector : Commercial
    • Dielectric Strength : Withstands 2000V minimum
    • Wire Size : #14 -#10 AWG Copper Conductor Only
    • Standard : CSA Listed, cULus, FSUL, UL Listed, RoHS
    • Temperature Rating : Maximum continuous +60°C, minimum -40° without impact
  • Specifications
    • Color : Gray
    • Finish : Matte
    • Product Line : Pass & Seymour
