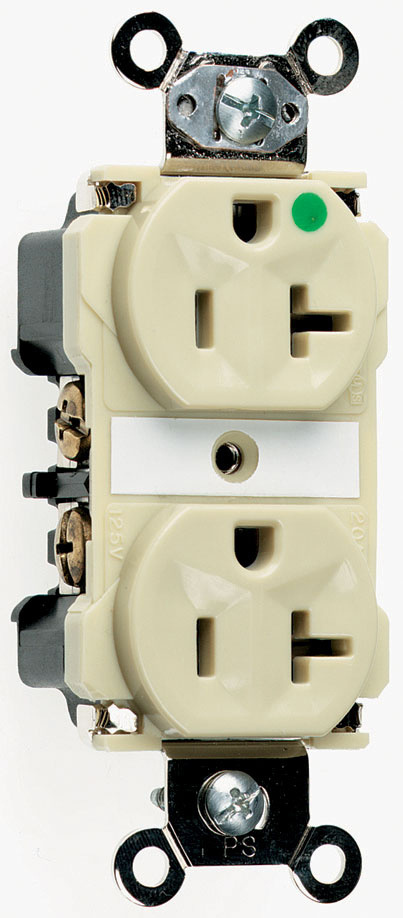

Extra Heavy-Duty Hospital Grade Receptacles, Back & Side Wire, 20A, 125V, Ivory

Extra Heavy-Duty Hospital Grade Receptacles, Back & Side Wire, 20A, 125V, Ivory

PSS8300I 8300-I 785007830095
11.10 / EACH
Extra Heavy-Duty Hospital Grade Duplex Receptacle Back & Side Wire 20amp 125volt Brown
  • Product Description
  • Features
  • Specifications
Extra Heavy-Duty Hospital Grade Duplex Receptacle Back & Side Wire 20amp 125volt Brown
  • .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
  • External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • Oversized #10 deep tri-drive head brass terminal and ground screws.
  • One-piece nickel-plated brass mounting strap with integral ground.
  • Auto-ground clip assures positive ground.
  • Illuminated version features exclusive LED lamp with solder connection for long durable life (10-12 years).
  • Impact-resistant nylon face and back body.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Line terminals accept #14 - #10 AWG stranded or solid copper-clad conductors.
  • Amperage : 20 A
  • Connection : Back and side wire
  • Wire Size : #14 - #10
  • Number of Poles : Double Pole
  • Special Features : One-piece nickel-plated brass mounting strap with integral ground. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. Exclusive patented feature, circuit label on face allows permanent circuit identification. .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and back body. Oversized #10 deep tri-drive head brass terminal and ground screws. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Line terminals accept #14 - #10 AWG stranded or solid copper-clad conductors. Auto-ground clip assures positive ground.
  • Dielectric Strength : Withstands 2000V minimum
  • Color : Ivory
  • Certifications : FEDSPEC,CULUS
  • NEMA Rating : 5-20R
  • Standard : cULus UL498, CSA C22.2 No. 42
  • Voltage : 125.0 V
  • Environmental Conditions : Flammability: UL94 V2 and UL94-5 VA
  • Country Of Origin : MX
  • Temperature Rating : Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Product Line : Pass & Seymour
  • Number of Wires : 3.0
  • Application Sector : Commercial
  • Certifications
    • Federal Spec Listed : WC596
    • cULus Listed : 140596
