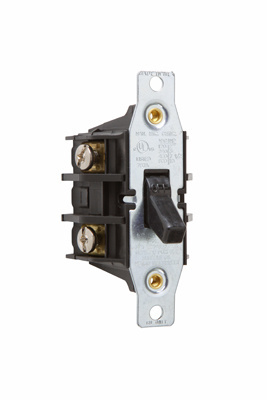

Double Pole, Single Phase AC Manual Controller

Double Pole, Single Phase AC Manual Controller

PSS7802MD 7802-MD 785007267655
38.41 / EA
  • Amperage: 30 A
  • Country of Origin: Mexico
  • Voltage: 600.0 V
Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.
  • Product Description
  • Features
  • Specifications
Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.
  • Gull-wing shaped brass terminal pressure clamps
  • External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
  • UL508 and cULus Listing of individual device and assembled device within enclosure
  • High Horsepower rating of 20HP
  • For covering patents, see www.legrand.us/patents.
  • Constructed of glass-reinforced thermoplastic
  • Certifications
    • cULus Listed
  • Country Of Origin : MX
  • Standard : CSA Listed, UL Listed
  • Actuator : Toggle
  • Connection : Side & Back Wired
  • Voltage : 600.0 V
  • Certifications : CULUS
  • Amperage : 30.0 A
  • Operating Cycles : 50000.0
  • Product Line : Pass & Seymour
  • Special Features : Double┬ápole,┬áSingle Phase AC Manual Motor Controller, suitable as Motor Disconnect
  • Environmental Conditions : UL94 V2
