Commercial Specification Grade Switch, White

SWITCH 1P/20A 120/277V WHITE

PSSCS20AC1W CS20AC1-W 785007126471
3.96 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Commercial Specification Grade Switch, White-1
  • Action: Single Pole
  • Actuator: Toggle Switch
  • Amperage: 20 A
  • Applications: Commercial
  • Contact Rating: 120 V, 20 A, 277 V
  • IsSustainable: No
  • Number of Poles: 1
  • Voltage: 120 V

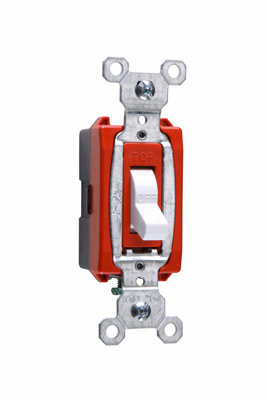

Commercial 1-Pole Switch, Side-Wire, 20A 120/277V.
QTY
  • Product Description
  • Features
  • Specifications
Commercial 1-Pole Switch, Side-Wire, 20A 120/277V.
  • Features
    • One-piece brass alloy contact arm for reliable electrical performance.
    • One-piece steel strap with integral ground is plated for corrosion resistance.
    • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
    • Heavy-duty toggle bumpers for smooth and quiet operation.
    • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
    • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
    • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
    • Oversized silver alloy contacts for longer dependable switch life.
    • Tri-drive terminal and mounting screws.
    • For covering patents, see www.legrand.us/patents."
    • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
  • Certifications
    • cULus Listed
    • Federal Spec Listed
  • Specifications
    • Country of Origin : Mexico
    • Amperage : 20.0 A
    • Actuator : Toggle
    • Voltage : 120.0 V
    • Standard : UL 498/20
    • Action : Single pole
    • Application Sector : Commercial
    • Number of Poles : Single Pole
    • Contact Rating : 20Amp, 120/277Vac
    • Special Features : Side wire, locking support, heavy duty toggle
  • Specifications
    • Color : White
    • Product Line : Pass & Seymour
