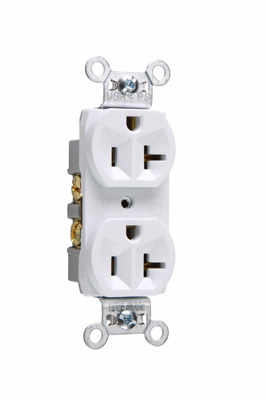

Commercial Spec Grade Receptacle, Side Wire, 20A, 125V, White

COMMER. DUPLEX 20A/125V WHITE

PSSCR20W CR20-W 785007119183
2.10 / EACH
  • Amperage: 20 A
  • Country of Origin: Mexico
  • NEMA: 5-20R
  • Number of Poles: 2
  • Number of Wires: 3
  • Voltage: 125.0 V
Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 125volt, Gray
  • Product Description
  • Features
  • Specifications
Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 125volt, Gray
  • Auto-ground clip assures positive ground.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here."
  • Tri-drive terminal and mounting screws.
  • Impact-resistant nylon face and thermoplastic back body.
  • For covering patents, see www.legrand.us/patents."
  • Terminal compartments isolated from each other for positive conductor containment.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring."
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly."
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention."
  • Color : White
  • Product Line : Pass & Seymour
  • Connection : Wire Ground
  • Amperage : 20 A
  • Number of Wires : 3.0
  • Application Sector : Residential/Commercial
  • Number of Poles : Double Pole
  • NEMA Rating : 5-20R
  • Standard : UL 498
  • Special Features : Side wire, Duplex, tri-driver terminal &Mountingscrews
  • Voltage : 125.0 V
  • Wire Size : 4 AWG
  • Country of Origin : MX
