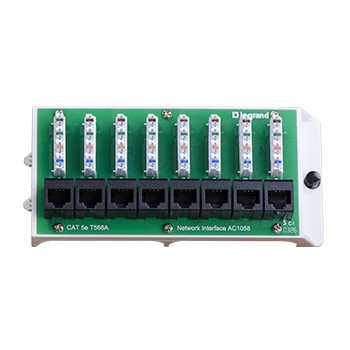

8 Port Cat5e Network Interface Module AC1058

8 PORT CAT5E NETWORK INTERFACE

PSSAC1058 AC1058 804428432685
51.88 / EA
http://schema.org/OutOfStock
Mayer-DDS-8 Port Cat5e Network Interface Module AC1058-1
  • Cable Type: Cat 5e
  • Depth: 1.5 in, 38.1 mm
  • Height: 161.9 mm, 6.41 in
  • Material: Metal Bracket With Printed Circuit Board
  • Mounting Type: Tabs / Plungers & Grommets
  • Number of Ports: 8
  • Termination Type: 110 IDC Punchdown / RJ45 Connectors - T568A Wiring
  • Weight: 0.363 lb
  • Width: 2.9 in, 69.9 mm
The AC1058, 8 Port Cat5e Network Interface Module is designed to connect your Router / Switch to wired networking locations throughout the home. Eight front-mounted 110-IDC punchdown terminals and RJ-45 connectors allow for easy configuration of the home network with patch panel simplicity. The network interface module is UL listed and exceeds TIA/EIA 568-C.2 industry standards.
QTY
  • Product Description
  • Features
  • Specifications
The AC1058, 8 Port Cat5e Network Interface Module is designed to connect your Router / Switch to wired networking locations throughout the home. Eight front-mounted 110-IDC punchdown terminals and RJ-45 connectors allow for easy configuration of the home network with patch panel simplicity. The network interface module is UL listed and exceeds TIA/EIA 568-C.2 industry standards.
  • Features
    • Supports punchdown termination of up to 8 Cat5e data lines for easy interface with the home network
    • Provides connectivity for ethernet connected devices like computers, TV's, gaming systems and network streaming devices
    • Easy access to front mounted 110-IDC Punchdown terminals and RJ45 Jacks
    • Module mounts in all On-Q structured wiring enclosures
    • Supports termination using T568A wiring standard, is UL listed and exceeds TIA/EIA 568-C.2 industry standards
  • Eco-Benefit Information
    • RoHS Compliant
  • Technical Information
    • Mounting : Tabs / Plungers & Grommets
    • Operating Temperature (Celsius) : 0°C - 50°C
    • Supported Standards : TIA/EIA 568-C.2
  • Dimensions
    • Depth (Metric) : 38.1mm
    • Depth (US) : 1.5"
    • Height (Metric) : 161.9mm
    • Height (US) : 6.41"
    • Width (Metric) : 69.9mm
    • Width (US) : 2.9"
    • Overall Dimensions (Metric) : 161.9mm H x 69.9mm W x 38.1mm D
    • Overall Dimensions (US) : 6.41" H x 2.9" W x 1.5" D
    • Primary Packaging Weight (Metric) : 0.200kg
    • Product Weight (US) : 0.363lbs
  • Construction Information
    • Material 4 : Metal Bracket with Printed Circuit Board
    • Installation Location : On-Q Enclosure (Metal & Plastic)
  • General Info
    • Cable Type : Cat 5e
    • Color : Black/Green
    • Number Of Ports : 8
    • Performance Category : Cat5e
    • Termination : 110 IDC Punchdown / RJ45 Connectors - T568A Wiring
  • Listing Agencies/Third Party Certifications
    • UL Standard : CAN/CSA C22.2 No. 182.4, Plugs, Receptacles and Connectors for Communication Systems; UL 1863, Communications-Circuit Accessories
