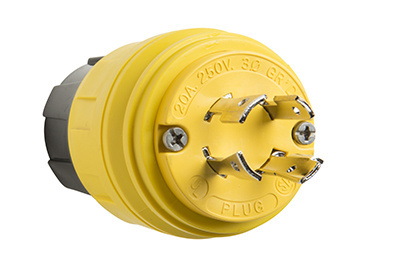

Watertight NEMA 4X/6P Locking Plug, 20A 250V, Yellow

TL PLUG IP67 20A 3PH 250V L152

PSS26W75 26W75 785007033557
72.45 / EACH
http://schema.org/OutOfStock
  • Amperage: 20 A
  • Country of Origin: USA
  • NEMA: L15-20P
  • Number of Phases: 3
  • Number of Poles: 3
  • Number of Wires: 4
  • Voltage: 250.0 V
  • Wire Size: 10 AWG, 14 AWG
Locking Watertight Plug, 20amp 3 250 volt, NEMA Configuration L15-20, multipoint sealing system provides environmental protection of: NEMA 4, 4X, 6, 6P & IP67 rated.
QTY
  • Product Description
  • Features
  • Specifications
Locking Watertight Plug, 20amp 3 250 volt, NEMA Configuration L15-20, multipoint sealing system provides environmental protection of: NEMA 4, 4X, 6, 6P & IP67 rated.
  • Features
    • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather."
    • Nickel-Plated blades and contacts for long lasting, superior corrosion resistance."
    • Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated."
    • Devices resist high-pressure hose down of 1,500 psi."
    • Color coded sealing bushings provided for large range of cord diameters
    • Large ribs on body for a superior grip when mating.
  • Specifications
    • Color : Yellow
    • Product Line : Pass & Seymour
  • Specifications
    • Country of Origin : US
    • Special Features : Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
    • Amperage : 20 A
    • Phase : Three
    • NEMA Rating : L15-20P
    • Voltage : 250.0 V
    • Number of Wires : 4.0
    • Number of Poles : 3-Way
    • Standard : UL Listed, CSA Listed
    • Environmental Conditions : Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
    • Wire Size : 14 AWG min - 10 AWG max
