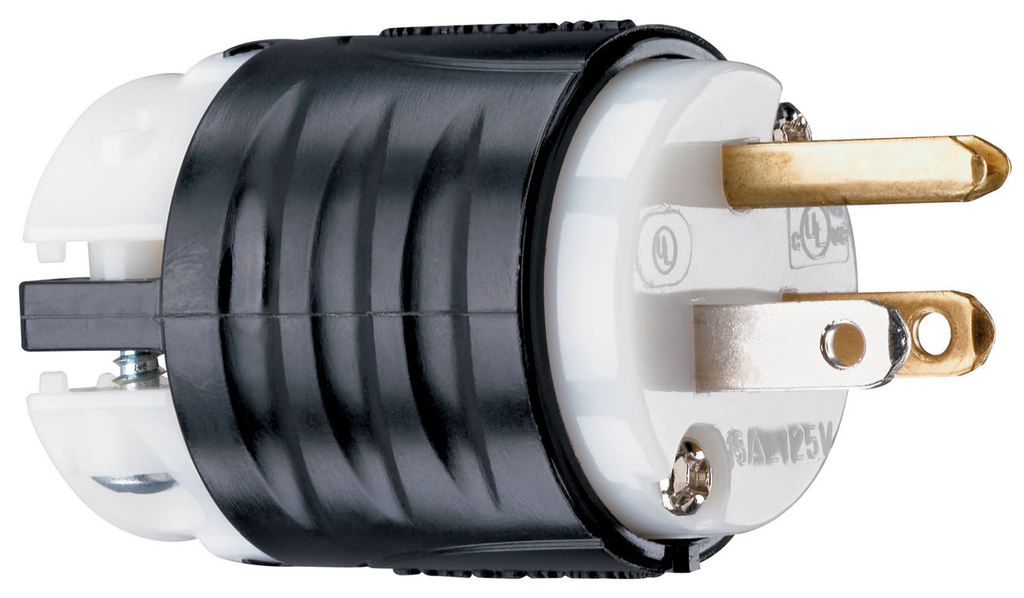

15A, 125V Extra-Hard Use Spec-Grade Plug, White Face

PLUG - 15A 2P3W STR BLADE SPC

PSSPS5266X PS5266-X 785007236903
10.87 / EACH
http://schema.org/OutOfStock
  • Amperage: 15 A
  • Connection Type: Wire Grounding
  • IsSustainable: No
  • NEMA: 5-15P
  • Number of Poles: 2
  • Number of Wires: 3
  • Voltage: 125.0 V
  • Wire Size: 4 AWG
Straight Blade Plug 2-Pole 3-Wire 15A 125V Gray
QTY
  • Product Description
  • Features
  • Specifications
Straight Blade Plug 2-Pole 3-Wire 15A 125V Gray
  • Features
    • Unit arrives completely ready-to-wire, cuts installation time significantly."
    • Nylon housing provides impact and chemical resistance.
    • Rugged two-piece cord grip provides more uniform cord retention.
    • Internal dust shield keeps terminals free of contaminants.
    • Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
    • All 3-wire terminals located on the same plane, allows for quick wire termination from any angle."
    • Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity."
    • Cord-grip screws recessed to protect installer against screwdriver head slippage.
    • For covering patents, see www.legrand.us/patents."
  • Specifications
    • Country of Origin : Mexico
    • Amperage : 15 A
    • Wire Size : 4
    • Standard : UL 498
    • NEMA Rating : 5-15P
    • Voltage : 125.0 V
    • Number of Wires : 3.0
    • Connection : Wire Grounding
    • Number of Poles : Double Pole
    • Special Features : Rugged 2pc cord grip, internal dust sheild & tri-drive assembly
  • Specifications
    • Color : Black
    • Product Line : Pass & Seymour
