Mini-Com® Faceplate, 1 Port, White

Mini-Com® Faceplate, 1 Port, White

PANCFPE1WHY CFPE1WHY 074983033232
3.06 / EA
  • Type: Faceplate

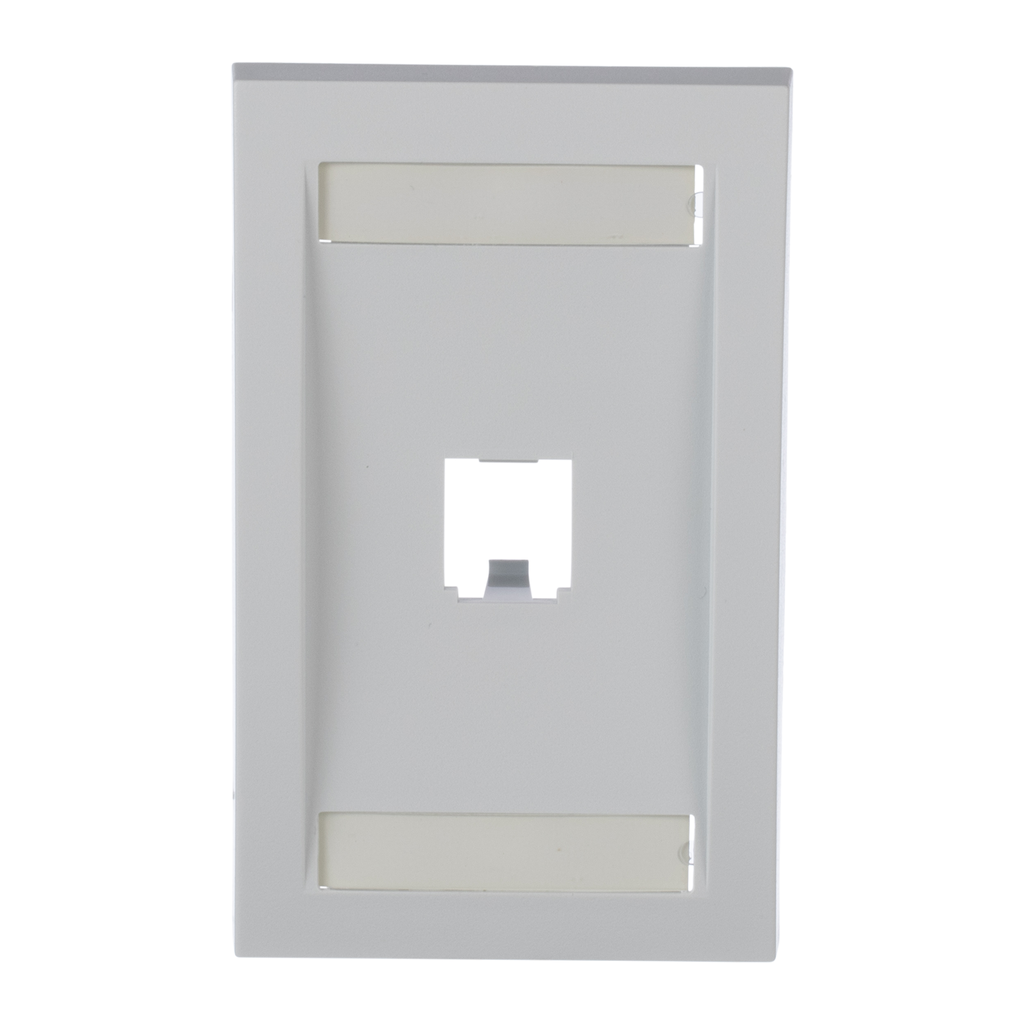

The Mini-Com® Executive Series Faceplate accepts one Mini-Com Module. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a raised rail design on the outer edge of the frame, has a label pocket for easy identification, and is white.
  • Product Description
  • Specifications
The Mini-Com® Executive Series Faceplate accepts one Mini-Com Module. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a raised rail design on the outer edge of the frame, has a label pocket for easy identification, and is white.
  • Identification Type : Label Pocket
  • Overall Width (mm) : 69.85
  • Outlet Orientation : Flat
  • Module Type : Mini-Com®
  • Overall Width (In.) : 2.75
  • Gang Opening Type : Single Gang
  • Mount Orientation : Vertical
  • Material : ABS
  • Overall Height (mm) : 114.3
  • Standards Met : RoHS Compliant
  • Overall Height (In.) : 4.5
  • Overall Depth (mm) : 21.08
  • Product Type : Faceplate
  • Product Segment : EDI-ENT
  • Overall Depth (In.) : 0.83
  • Number of Ports : 1
  • Sub Brand : Pan-Net®
  • Color : White
  • Packaging Details
    • RoHS Compliant : Compliant
    • Std Package Height MM : 34.29
    • Pallet Volume : 55.978593
    • GTIN Package : 00074983033232
    • Std. Pkg. UOM : Piece
    • Std Carton Height In : 4.45
    • REACH Status : False
    • Std Package Width MM : 86.36
    • Standard Package Volume Ft3 : 0.0175
    • Std Carton Length MM : 124.46
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Min. Order UOM : Piece
    • Std. Pkg. Qty. : 1
    • Std Package Width In : 3.4
    • Standard Carton Weight Pounds : 1.2500
    • Std Carton Length In : 10.25
    • GTIN Carton : 50074983033237
    • Std Package Length In : 4.9
    • Std Package Length MM : 124.46
    • EAN : 00074983033232
    • Standard Package Weight Pounds : 0.1250
    • Hazardous Material Flag : N
    • Pallet Weight : 398.7500
    • Pallet Quantity : 3,190
    • UPC : 07498303323
    • Min Order Qty : 10
    • Std Package Height In : 1.35
    • Std Carton Width MM : 163.83
    • Std Carton Height MM : 113.03
    • Std Carton Width In : 6.45
    • Country of Origin 2Digit : CR
    • Buy American Compliant : Y
    • UOM EA PK : EA
    • Standard Carton Volume Ft3 : 0.0175
    • Std Ctn Qty : 10
